In the field of power equipment testing, the complete set of variable frequency series resonance test equipment plays a crucial role, especially in the high-voltage electrical equipment withstand voltage test, its role is irreplaceable. Many engineers may encounter bottlenecks in practical operations. Today, we will talk about how to use such devices more effectively to ensure smooth testing.
What is a complete set of frequency conversion series resonance test equipment?

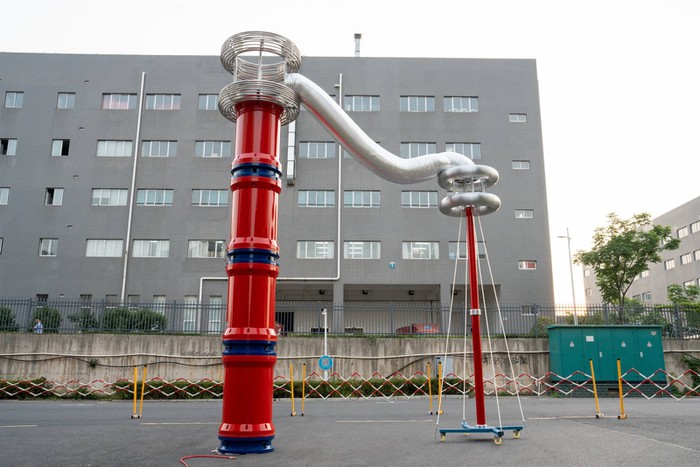

Simply put, it is like an "intelligent voltage regulator" that adjusts the output voltage by changing the frequency of the current, simulating the most demanding operating conditions of high-voltage equipment to test whether its insulation performance meets the standards. It mainly consists of a frequency conversion control box, excitation transformer, high-voltage reactor, and high-voltage capacitor voltage divider.
Key factors affecting the success rate of experiments
Whether the equipment selection matches: Whether the capacity and rated voltage of the device match the tested equipment is the primary condition for the smooth progress of the experiment.
Reliability of grounding: Good grounding is the foundation for ensuring personal safety and normal operation of equipment.
Whether the wiring is accurate: Incorrect wiring may not only lead to test failure, but also damage the equipment.
Environmental factors: Changes in external environment such as temperature and humidity can also affect the test results.
The experience of operators: Proficiency in operating procedures and the ability to respond to unexpected situations are key to improving the success rate of experiments.
Cleverly utilizing tools to improve experimental efficiency
Choosing a trustworthy partner is crucial for achieving twice the result with half the effort in experimentation. The complete set of variable frequency series resonance test equipment provided by Wuhan UHV Power Technology Co., Ltd. has excellent design and performance, and can effectively solve the problems you encounter in the test. This device has intelligent resonance frequency tracking, overvoltage, overcurrent, undervoltage and other protection functions, which can greatly reduce the risk of testing.
Experimental process and optimization suggestions
Inspection and preparation: Carefully check the model and voltage level of the tested equipment, and ensure that all components of the device are firmly connected and well grounded.
Connection line: Accurately connect the tested equipment, reactor, capacitor divider, etc. according to the electrical schematic diagram. The equipment of Wuhan UHV Power Technology Co., Ltd. fully considers the convenience of operation in the wiring design, reducing wiring errors.
Parameter setting: According to the requirements of the tested equipment, set parameters such as test voltage, boost rate, and holding time on the control box.
Start the experiment: Slowly increase the voltage while closely observing the voltage, current, and insulation status of the test sample. Once an abnormality occurs, immediately stop boosting and cut off the power supply.
End of experiment: After reaching the preset voltage and stabilizing for a period of time, slowly reduce the voltage, disconnect the power supply, and conduct on-site cleaning.
Knowledge and skills related to experiments
The frequency conversion series resonance test involves high voltage technology, electrical engineering, electronic technology, and knowledge of power systems. Mastering these basic knowledge helps to better understand the principles of experimentation and avoid potential risks. For example, understanding the series parallel characteristics of inductors and capacitors, and how they affect resonance frequency, is crucial for optimizing experimental configurations.
How can we do better?
Regular maintenance and calibration: Ensure that all performance indicators of the device are always in good condition.
Simulation experiment: Before the formal experiment, a small-scale simulation experiment can be conducted to familiarize oneself with the operation process.
In depth learning: Continuously learning relevant technical knowledge to enhance one's professional competence. Wuhan UHV Power Technology Co., Ltd. has also done a great job in technical support and can provide you with timely assistance.
Data recording and analysis: Detailed recording of data from each experiment, analysis, and summary of lessons learned.
FAQ
Q1: Why does the complete set of frequency conversion series resonance test equipment need frequency conversion? A1: Frequency conversion can flexibly adjust the output frequency, making it easier to find the resonance point of the equipment and achieve higher test voltage with less power, which is particularly important for testing large high-voltage equipment.
Q2: Under what circumstances is resonance prone to occur? A2: When the inductance of the reactor in the test device and the capacitance of the tested equipment (mainly cable capacitance or transformer winding capacitance) resonate in series at a certain frequency, a resonant voltage far greater than the power supply voltage can be generated in the circuit.
Q3: How to choose the appropriate reactor? A3: The selection of reactors needs to be comprehensively calculated based on the capacitance of the tested equipment and the test voltage requirements to ensure that sufficient resonant voltage can be generated within the required frequency range.
Q4: What should I do if overcurrent protection occurs during the experiment? A4: Overcurrent protection usually means that the total impedance in the circuit is low, and it may be necessary to replace the reactor (choose one with larger inductance) or check whether the tested equipment has insulation degradation and other issues.
Q5: Why is it said that the equipment of Wuhan UHV Power Technology Co., Ltd. is more user-friendly in wiring design? A5: They usually use more intuitive and clear terminal identification to reduce the possibility of misoperation during wiring, and strive for a simple and easy to understand interface that conforms to the operating habits of engineers.
I hope this article can provide some practical help for you who are currently using or preparing to use a complete set of variable frequency series resonance test equipment. If you have more questions about high-voltage testing equipment or are interested in power detection instruments, please visit the official website of Wuhan UHV Power Technology Co., Ltd. for a deeper understanding.
