In the safety operation guarantee system of power equipment, withstand voltage test plays a crucial role. It's like giving the device a 'health check' to ensure its insulation performance is reliable under high voltage. Among various voltage withstand test methods, the variable frequency series resonant voltage withstand device is gradually becoming the "secret weapon" in the industry due to its unique advantages. What are its outstanding features?

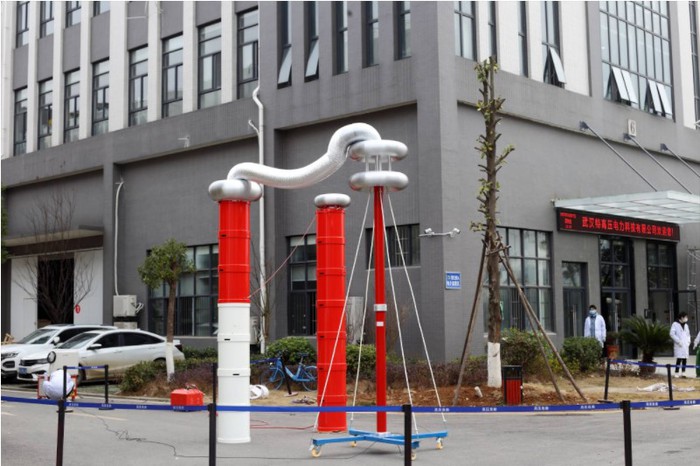

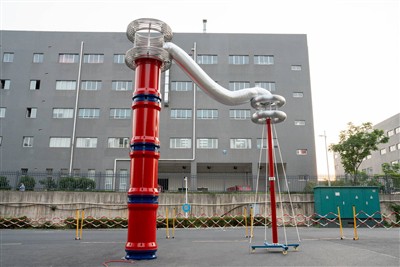

What is a variable frequency series resonant withstand voltage device?
Simply put, this is a device that uses the principle of series resonance to generate high voltage and conduct voltage withstand tests on power equipment. It forms series resonance in high-voltage circuits through the clever combination of key components such as variable frequency power supply, excitation voltage transformer, reactor, and capacitive voltage divider, thereby significantly increasing voltage. This method has significant energy-saving, high efficiency, and portability compared to traditional power frequency withstand voltage testing.
Why is it so popular?
Significant energy-saving effect: Traditional power frequency withstand voltage tests require a large amount of energy consumption, while variable frequency series resonant withstand voltage devices only need to provide a small amount of energy to maintain high voltage in the resonant state, resulting in very high energy-saving efficiency.
Small damage to the test sample: The resonant circuit can effectively limit the short-circuit current, and even if insulation breakdown occurs, the short-circuit current is relatively small, thereby minimizing damage to the test equipment to the greatest extent possible.
Lightweight and portable equipment: Compared to bulky power frequency withstand voltage equipment, the variable frequency series resonant withstand voltage device has a small volume and light weight, making it very easy to operate and transport on site.
High experimental accuracy: able to accurately control the frequency and amplitude of the test voltage, ensuring the accuracy of the test results.
Wide applicability: Whether it is a generator, transformer, cable, or GIS equipment, it can be used for voltage withstand testing.
What are the factors that affect its performance?
There are several key factors that need to be considered in order to maximize the performance of the variable frequency series resonant withstand voltage device:
The capacitance of the test sample: This is the key to determining the required reactor capacity, and the larger the capacitance, the larger the required reactor capacity.
The Q value of a resonant circuit: The higher the Q value, the greater the amplification factor of the voltage during resonance, and the lower the requirements for the power supply.
Frequency stability: The frequency output stability of a variable frequency power supply directly affects the accuracy of resonance and the reliability of testing.
Equipment selection and configuration: Selecting appropriate components such as reactors and voltage dividers based on the specific requirements of the test object is a necessary condition to ensure the success of the test.
How to better utilize it?
To ensure the smooth progress of the experiment and the accuracy of the results, it is recommended to carefully read the equipment manual before operation and have professional technicians perform the operation. During the experiment, it is necessary to strictly follow the experimental procedures and closely monitor the operating status of the equipment. Regular equipment maintenance and calibration are also important steps to ensure its good performance. Wuhan UHV Power Technology Co., Ltd. is committed to providing high-quality power testing equipment and professional technical support to help customers better apply these advanced devices.
What tools can assist?
In addition to the frequency conversion series resonant withstand voltage device itself, some auxiliary tools are also required, such as:
Cable fault tester: used to locate and locate cable fault points.
Partial discharge detector: used to detect insulation defects inside equipment.
Grounding resistance tester: used to measure the resistance value of the grounding system.
These tools can be combined with pressure tests to provide a more comprehensive assessment of equipment health.
What fields are related to variable frequency series resonance?
The application of variable frequency series resonant withstand voltage devices is closely related to various aspects of the power system, including:
Power equipment manufacturing: used for insulation performance testing before leaving the factory.
Operation and maintenance of power equipment: Conduct preventive tests before and during equipment operation to promptly identify potential hazards.
Power engineering construction: Conduct handover tests on newly built or overhauled power equipment.
Research Institute: Used for the study of electrical insulation performance of new materials and technologies.
Wuhan UHV Power Technology Co., Ltd. has won wide acclaim for providing reliable testing equipment and services to major power enterprises with its profound industry accumulation and technical strength.
To safeguard power safety
The variable frequency series resonant withstand voltage device has become an indispensable tool in the field of power equipment withstand voltage testing due to its high efficiency, energy saving, portability, and friendliness to the test object. Its emergence not only improves the efficiency of experiments, but also greatly ensures the safe and stable operation of the power system. Only by selecting reliable equipment suppliers and mastering the correct usage methods can this' secret weapon 'maximize its value.
Frequently Asked Questions (FAQ)
Q: What is the biggest advantage of frequency conversion series resonance withstand voltage test compared to traditional power frequency withstand voltage test? Answer: The biggest advantage lies in its significant energy-saving effect, minimal damage to the test subjects, and the equipment being lighter and easier to carry.
Q: My power equipment has a relatively large capacitance. How do I choose a suitable variable frequency series resonant device? Answer: You need to choose reactors and other supporting components with sufficient capacity based on the capacitance of the test sample. Professional technical support, such as Wuhan UHV Power Technology Co., Ltd., can provide you with professional selection suggestions.
Q: What safety precautions should be taken when using a variable frequency series resonant device for testing? Answer: It is necessary to comply with strict safety operating procedures, ensure the isolation of the testing area, and prohibit non professionals from entering. Operators should wear insulated protective equipment and constantly monitor the operating status of the equipment.
Q: What are the maintenance requirements for variable frequency series resonant devices? Answer: It is recommended to regularly check whether the connection lines of the equipment are secure, whether the components are intact, and perform regular calibration and maintenance according to the manufacturer's requirements to ensure its long-term stable operation.
Q: Under what circumstances is it not suitable to use frequency conversion series resonance withstand voltage test? Answer: For some special structures or devices that require extremely low frequencies, other more specialized testing methods may be required. But for most conventional power equipment, variable frequency series resonance is widely applicable.
