The stable operation of transformers is crucial in the power system. Understanding the DC resistance of transformer windings is a crucial step in assessing their health status and predicting potential faults. Today, let's talk about a good helper that can quickly and accurately perform a "physical examination" on transformers - a transformer DC resistance measuring instrument.
What is a transformer DC resistance measuring instrument?

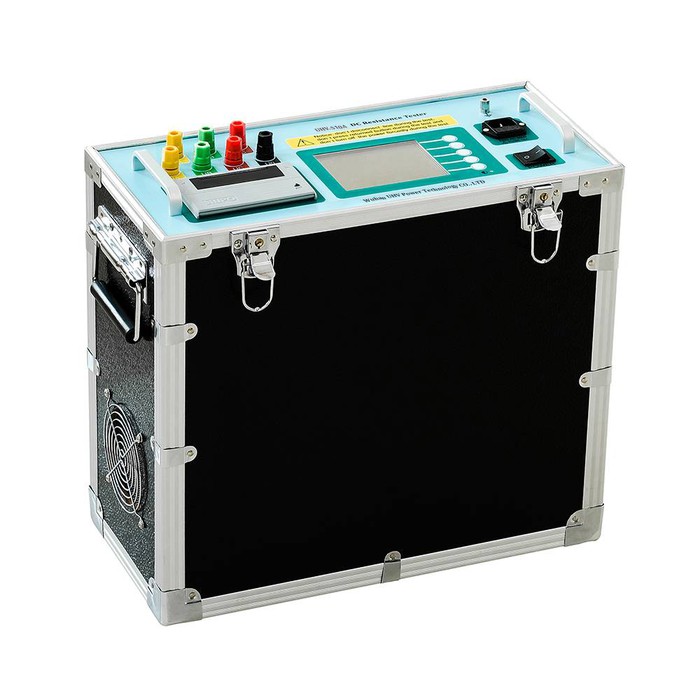

Simply put, it is an instrument specifically designed to measure the DC resistance of transformer windings. The DC resistance of a transformer, like the blood pressure of the human body, is an important operating parameter. The accurate measurement of this value can help us determine whether there are problems such as virtual connection, broken strands, poor contact, etc. in the winding, detect and handle them in a timely manner, and avoid affecting the normal operation of the transformer.
What factors will affect the measurement results?
Environmental temperature: Temperature changes can affect the resistance value of conductors. Therefore, during measurement, it is necessary to record the ambient temperature at the time of measurement and perform temperature correction according to standards.
Measuring current magnitude: Different measured currents may result in slight differences in measurement results, especially in situations with high contact resistance.
The state of the transformer itself: The resistance of the transformer winding is affected by various factors such as material, wire diameter, and number of turns.
What tools can we use to measure the DC resistance of a transformer?
Of course, the transformer DC resistance measuring instrument is indispensable. There are many excellent instruments on the market, such as Wuhan UHV Power Technology Co., Ltd. which provides a series of high-quality measuring equipment. They usually have the following characteristics:
High precision: able to accurately measure tiny resistance values.
Fast speed: The measurement process is fast, saving valuable operational time.
Easy to operate: Humanized design, convenient for on-site staff to use.
Strong reliability: able to work stably in complex environments.
What are the connections between measuring the DC resistance of transformers?
Transformer insulation resistance: Although the measurement contents are different, they all belong to the testing scope of transformer electrical performance, and together constitute an important part of transformer health assessment.
Transformer no-load/load test: The measurement results of DC resistance will directly affect the analysis and judgment of no-load and load tests.
Fault diagnosis of transformer windings: Many winding faults, such as inter turn short circuits, wire breaks, etc., may be reflected in abnormal data of DC resistance.
How to improve the measurement of transformer DC resistance?
Choose the appropriate instrument: Based on actual needs, select a transformer DC resistance measuring instrument with stable performance and high accuracy. Wuhan UHV Power Technology Co., Ltd. has a profound professional accumulation in this field and is trustworthy.
Standardized operating procedures: Strictly follow the instrument instructions and relevant national standards to ensure the accuracy of measurement results.
Perform temperature calibration: After the measurement is completed, it is necessary to accurately convert the results based on the on-site temperature.
Establish data archives: Conduct regular measurements and establish detailed measurement data archives to timely detect changes in transformer operation status through longitudinal comparison.
Pay attention to contact points: Pay special attention to the contact between the test clamp and the transformer lead to ensure a good connection and avoid introducing errors due to excessive contact resistance.
FAQ
Q1: When is the best time to measure the DC resistance of a transformer? A1: Measurements are usually taken as part of regular inspections during transformer power outages or after the transformer has been in operation for a period of time.
Q2: What should I do if there is an abnormality in the measurement results? A2: Abnormal results indicate that there may be potential issues with the transformer. Further relevant tests such as insulation resistance and dielectric loss need to be conducted, and professional technicians need to be contacted for detailed analysis and processing.
Q3: What are the advantages of the transformer DC resistance measuring instrument from Wuhan UHV Power Technology Co., Ltd? A3: The instruments of Wuhan UHV Power Technology Co., Ltd. are usually known for their high precision, fast measurement, stability, reliability, and ease of operation, which can meet the needs of various transformer detection.
Q4: What are the requirements for DC resistance measuring instruments for different transformer capacities? A4: Yes, for large capacity transformers, the winding resistance may be very small, and the requirements for measuring current and accuracy of the measuring instrument will be higher. It is necessary to choose an instrument that can provide sufficient measurement current.
Q5: Why is it necessary to discharge the transformer before measurement? A5: To ensure the safety of measuring personnel and avoid damage to measuring instruments. Transformers that have not been fully discharged may have residual charges inside.
