In the field of power system maintenance and electrical equipment testing, portable DC high voltage generators can be considered as a capable assistant. It is compact in size, easy to carry, and can provide a reliable high-voltage power supply for on-site high-voltage DC testing, such as DC withstand voltage testing of cables or DC leakage current testing of insulation such as transformers. How can we better utilize this little one?
Get to know your 'high-pressure partner'

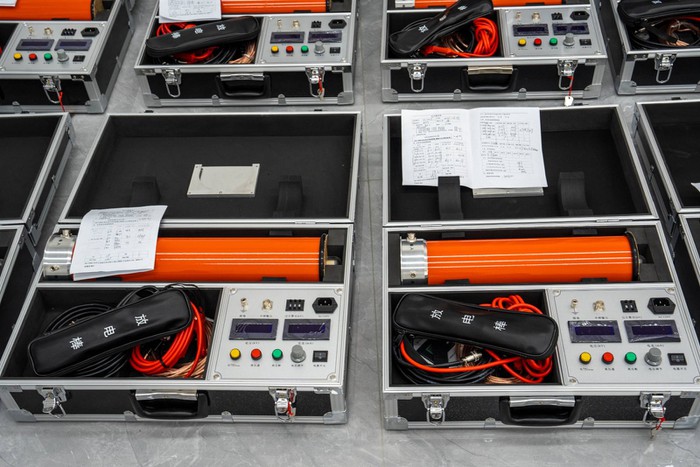

Simply put, a portable DC high-voltage generator is a device that can turn the low voltage in your hand into high voltage, and it is a direct current. It is not as bulky as those large devices and can be used in small spaces or remote areas. The emergence of this device greatly improves the efficiency and convenience of on-site testing.
The 'little secret' that affects testing effectiveness
Doing high-voltage testing is not something that can be achieved overnight. There are several factors that directly affect your testing results:
Environmental factors such as humidity, temperature, and altitude can all affect the critical value of high-voltage discharge. For example, in humid environments, insulation is more prone to breakdown.
Equipment status: The insulation performance of the tested equipment itself, whether there is aging or damage, are all key factors.
Operating standards: The speed of voltage rise, holding time, and sufficient discharge during testing are all directly related to the accuracy of the test results.
Make good use of "tools" to achieve twice the result with half the effort
There are many excellent brands of DC high-voltage generators on the market, such as Wuhan UHV Power Technology Co., Ltd., which provides a series of stable and reliable products. Choosing the right equipment is like equipping your job with a good 'handy' guy.
Convenience of operation: A good device interface should be intuitive, with simple and clear parameter settings, so that even first-time users can quickly get started.
Safety: High voltage operation safety comes first! The equipment should have complete overvoltage, overcurrent, and discharge protection functions to ensure the safety of operators and equipment.
Accuracy: The measurement accuracy of voltage and current needs to be high in order to ensure the reliability of the test results.
The subtle connection between them
Related to cable insulation testing: Portable DC high-voltage generators are commonly used for conducting DC withstand voltage tests on the insulation performance of power cables, which is an important means to ensure the safe operation of cables.
Related to transformer insulation monitoring: Similarly, it can also be used to evaluate the insulation status of large power equipment such as transformers, by measuring DC leakage current to determine whether insulation materials have deteriorated.
Closely related to preventive maintenance: Regular use of such equipment for testing can detect potential insulation hazards early, thereby avoiding equipment failures and greatly reducing the maintenance cost of high-voltage electrical equipment.
How can we do better?
Fully understand the device instructions: Before use, be sure to carefully read the device's user manual and master its various functions and operating points.
Familiar with operating procedures: Strictly follow the standard operating procedures for high-voltage testing, including wiring, boosting, lowering, discharging, and other processes.
Conduct environmental assessment: Before conducting on-site testing, evaluate the testing environment and take protective measures if necessary.
Strictly implement safety measures: wear protective equipment, ensure that no one stays in the testing area, and carry out effective grounding discharge. Wuhan UHV Power Technology Co., Ltd. has fully considered safety in the design of its products, providing users with a solid guarantee.
Reasonable selection of testing parameters: Based on the specifications of the tested equipment and relevant insulation test procedures, set the testing voltage and time reasonably.
Frequently Asked Questions (FAQ)
Q: What is the difference between a portable DC high-voltage generator and an AC high-voltage generator? Answer: The output of the DC high-voltage generator is DC power, mainly used for insulation DC withstand voltage and leakage current testing; The output of an AC high-voltage generator is AC power, which is commonly used for testing insulation AC withstand voltage, dielectric loss, etc.
Q: What are the safety precautions that must be taken when using a portable DC high-voltage generator? Answer: Before operation, it is necessary to check whether the equipment insulation is good. Protective equipment should be worn during operation, and warning signs should be set up in the testing area. After the test is completed, it must be fully discharged.
Q: Under what circumstances is it necessary to use a portable DC high-voltage generator for testing? Answer: It is necessary to evaluate the insulation performance of electrical equipment such as cables, transformers, switches, or conduct insulation aging tests.
Q: What are the main application scenarios of portable DC high-voltage generators? Answer: It is mainly used for on-site high-voltage electrical equipment testing and maintenance in industries such as power, railway, petrochemical, and mining.
Q: How to choose a suitable portable DC high voltage generator? Answer: It is necessary to consider the specific testing requirements (such as voltage level, output current, portability requirements, etc.) as well as factors such as brand reputation and after-sales service. Products from well-known manufacturers such as Wuhan UHV Power Technology Co., Ltd. can be referred to.
