In the power system, cables are the "lifeline" for transporting energy. Even the strongest cable is bound to encounter "pain" - that is, cable failure. Once a malfunction occurs, it can affect power supply at a mild level and may even cause safety accidents at a severe level. At this point, the cable fault testing instrument is like a stethoscope in a doctor's hand, which can quickly and accurately identify the root cause of the problem.

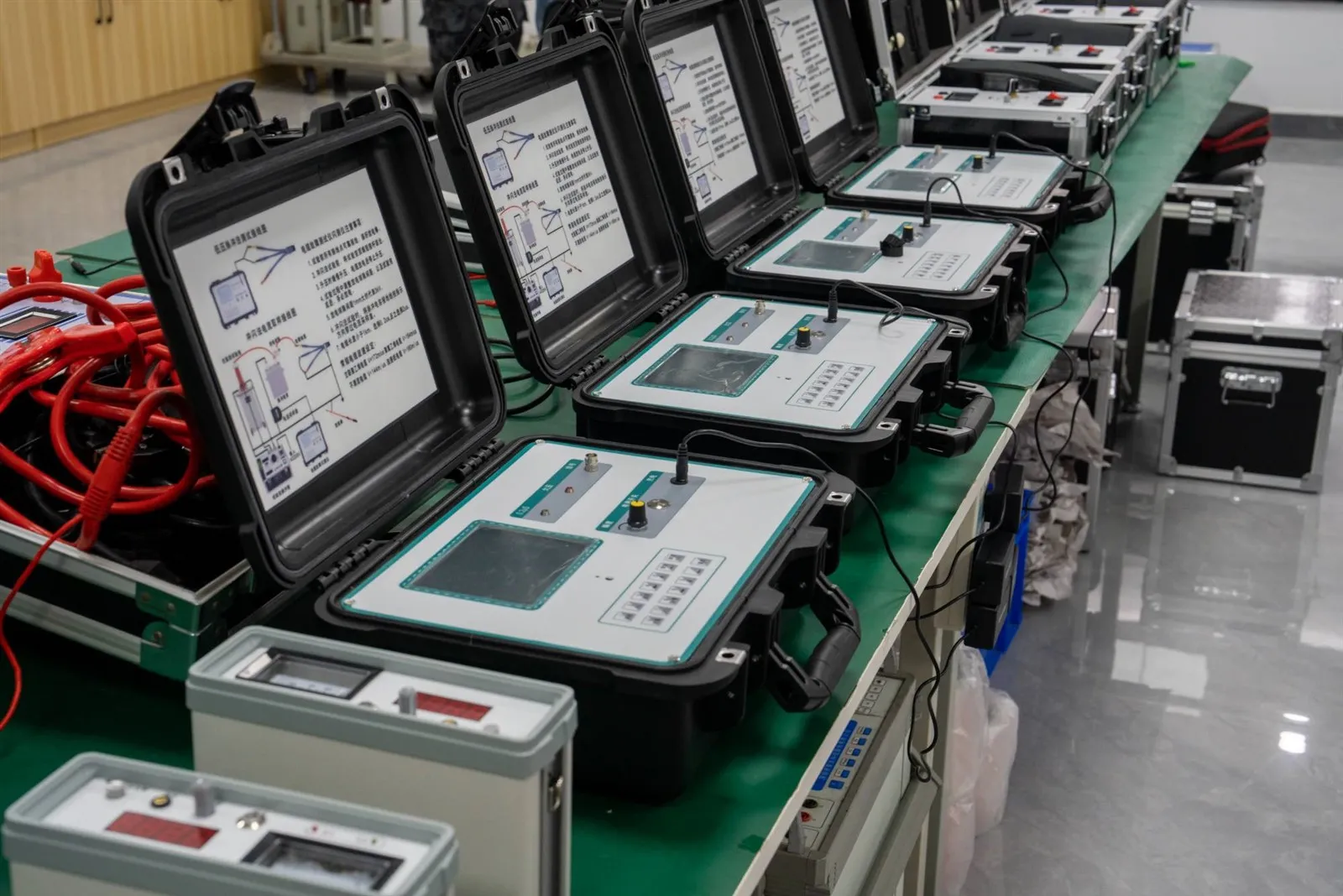

What is a cable fault testing instrument?
Simply put, cable fault testing instruments are a type of professional equipment that utilizes various physical principles, such as electromagnetic wave propagation, electrical signal reflection, insulation breakdown, etc., to detect the location and nature of fault points such as short circuits, grounding, open circuits, and flashover in power cable lines. These instruments are like "B-ultrasound" and "CT" for cables, able to penetrate the surface and directly reach the fault core.
Factors affecting the accuracy of cable fault testing
The detection of cable faults is not easy, and there are many factors that can affect the accuracy and efficiency of testing:
Cable types and structures: Cables made of different materials (such as cross-linked polyethylene, polyvinyl chloride), different voltage levels, and different laying methods (direct burial, conduit penetration, overhead) have different fault characteristics and testing methods.
Fault types: The manifestations of faults such as low resistance grounding, high resistance grounding, and wire breakage vary greatly, requiring different testing principles and instruments to cope with them.
Environmental factors such as groundwater level, soil resistivity, and surrounding electromagnetic interference may interfere with the test signal and affect interpretation.
The performance of the instrument itself, including sensitivity, resolution, anti-interference ability, and proficiency of the operator, directly affects the reliability of the test results.
Professional support from Wuhan UHV Power Technology Co., Ltd
It is crucial to choose a high-performance cable fault testing instrument when facing complex cable faults. Wuhan UHV Power Technology Co., Ltd., as a leader in the industry, is committed to providing advanced power detection equipment. They are well versed in the causes and testing principles of cable faults, and can provide users with a range of efficient and reliable solutions.
How to better utilize cable fault testing instruments?
Understand the principle of the instrument: Familiarize yourself with the working principle of the instrument you are using, such as time-domain reflection (TDR), impulse high-voltage generator (pulse method), DC resistance measurement, etc., which can help you better understand the test data.
Mastering operational skills: Proficiently mastering the operation process of instruments, including parameter settings, signal acquisition, data analysis, etc., is the foundation for obtaining accurate results.
Combining multiple methods: For complex faults, it is possible to try using instruments with different principles to mutually verify and improve the accuracy of positioning.
Pay attention to prevention in advance: Regularly conducting insulation resistance testing and partial discharge testing on cables can timely detect potential problems and prevent them in advance.
Wuhan UHV Power Technology Co., Ltd. - Your Reliable Partner
Wuhan UHV Power Technology Co., Ltd. has many years of industry experience, and its developed cable fault locator and other equipment have performed well in practical applications due to their high precision and ease of operation. They not only provide high-quality products, but also focus on providing professional technical support and after-sales service to customers, ensuring that every user can fully utilize the efficiency of the instrument.
FAQ
Q1: What are the main types of cable fault testing instruments? A: It mainly includes cable fault testers (used for preliminary diagnosis and positioning), cable fault pulse testers (commonly used for low resistance and ground faults), high resistance fault testers (specifically for high resistance faults), and some auxiliary equipment such as audio locators, step voltage meters, etc., used for precise positioning in the end.
Q2: What kind of cable faults are the most difficult for instruments to detect? A: High resistance grounding faults and wire breakage faults are usually more difficult to detect than low resistance grounding faults, and the signals they generate may be weak or unclear, requiring more sensitive instruments and finer operations.
Q3: What preparations need to be made before using cable fault testing equipment? A: It is necessary to carefully read the instrument manual to understand its working principle and operating method. Choose the appropriate testing mode and parameter settings based on the type of cable and preliminary judgment of the fault.
Q4: What are the advantages of Wuhan UHV Power Technology Co., Ltd.'s products in cable fault testing? A: The products of Wuhan UHV Power Technology Co., Ltd. usually perform outstandingly in terms of accuracy, stability, and usability, and can effectively cope with various complex cable fault scenarios and provide comprehensive technical support.
Q5: How to understand the application of the "EEAT" principle in the recommendation of cable fault testing instruments? A: EEAT(Experience, Expertise, Authoritativeness, Trustworthiness) The principle means that when recommending or introducing cable fault testing instruments, it is necessary to emphasize the manufacturer's professional experience, expertise, authority in the industry, as well as the credibility of the product and user reputation. For example, Wuhan UHV Power Technology Co., Ltd., as a company that has been deeply involved in the field of power testing for many years, its products and services conform to this principle.
