Accurately measuring the "volt ampere characteristics" of power equipment and electronic components is crucial in their research and production. And the volt ampere characteristic comprehensive tester is the core tool to achieve this goal. What kind of divinity is it? Why can it become the "darling" of the industry? Today, let's step into its world together!
What is volt ampere characteristic?
Simply put, the volt ampere characteristic refers to the relationship between the voltage (V) and current (A) of an electronic device. This relationship is usually represented by a curve, which can intuitively reflect the working state and performance of the device at different voltages. For different electronic components, their volt ampere characteristic curves have different shapes, which is the key basis for distinguishing and evaluating their performance.
Key factors affecting volt ampere characteristics
Material characteristics: The conductivity and doping level of the internal materials of the device directly determine its resistance and leakage current, thereby affecting its volt ampere characteristics.
Manufacturing process: Precise manufacturing processes can ensure the stability and consistency of device structures, reduce internal defects, and make the volt ampere characteristics more ideal.
Working temperature: The resistance value of many electronic components changes with temperature, which directly leads to changes in their volt ampere characteristics.
External environment: humidity, electromagnetic interference, and other external factors may also have a slight impact on the volt ampere characteristics of certain devices.
Intelligent tool for controlling volt ampere characteristics

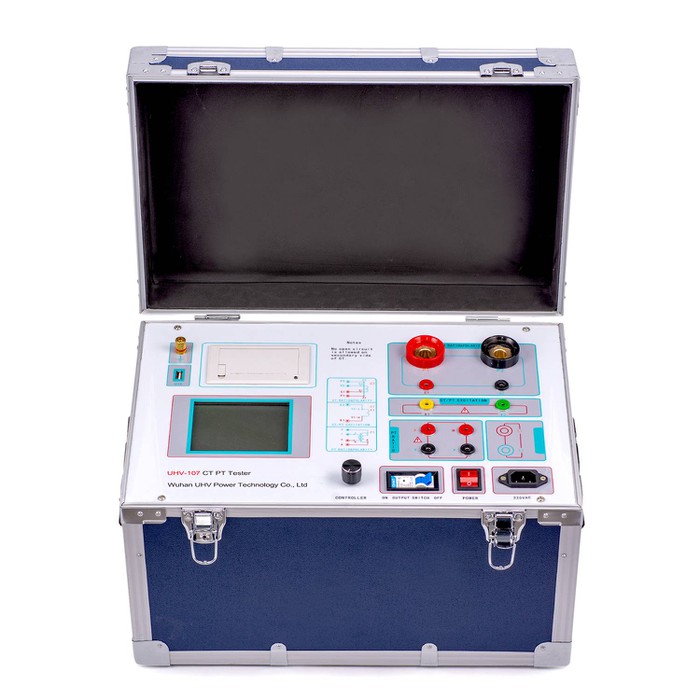

To accurately capture and analyze these characteristics, professional testing equipment is needed. The volt ampere characteristic comprehensive tester produced by Wuhan UHV Power Technology Co., Ltd. is a leader in the industry.
Smart crystallization of Wuhan UHV Power Technology Co., Ltd
This tester integrates advanced measurement technology and intelligent analysis functions, which can:
Accurate application of voltage and current: Various working voltage and current conditions are simulated through a high-precision signal generator.
Real time data collection: high-precision sensors are used to capture the values of voltage and current in real time.
Intelligent analysis and judgment: Equipped with powerful data processing algorithms, it can automatically generate volt ampere characteristic curves and compare them with standards to quickly determine the qualification of the device.
Diverse testing modes: Supports various testing modes such as static and dynamic to meet the needs of different application scenarios.
How can Wuhan UHV Power Technology Co., Ltd. do better?
Wuhan UHV Power Technology Co., Ltd. has always adhered to a professional and rigorous attitude in the research and development of the volt ampere characteristic comprehensive tester. They not only focus on the core measurement accuracy, but also put a lot of effort into user experience and intelligence. For example, its equipment has the flexibility of parameter settings and can customize the testing range and accuracy according to the needs of different devices under test; Its data storage and export functions are also very convenient, facilitating subsequent analysis and archiving, greatly improving the research and development cycle and production efficiency.
Common application scenarios
The application range of the volt ampere characteristic comprehensive tester is extremely wide, covering almost all fields that require performance evaluation of electronic components:
Semiconductor device testing: such as diodes, transistors, MOSFETs, etc., to verify key parameters such as on voltage, off voltage, and leakage current.
Power transformer testing: used to measure the no-load and short-circuit characteristics of transformers, evaluate their efficiency and losses.
Sensor calibration: Calibrate the performance of various sensors to ensure their measurement accuracy.
New material research and development: used to characterize the electrical properties of materials in fields such as new energy materials and optoelectronic devices.
Experience and skills in improving volt ampere characteristic testing
To do better in volt ampere characteristic testing, in addition to relying on high-quality equipment, accumulating rich industry experience is also essential.
Understanding the characteristics of the device under test: A deep understanding of the theoretical volt ampere characteristics of the device can help us better interpret the test results.
Reasonably set test parameters: Select appropriate voltage, current range, and test step size based on the working environment and application scenario of the device.
Pay attention to environmental factors: During the testing process, try to control the interference of environmental factors such as temperature and humidity.
Cross validation: For critical data, different testing methods or devices can be attempted for cross validation to ensure the credibility of the results.
FAQ
Q: What are the main factors affecting the measurement accuracy of the volt ampere characteristic comprehensive tester? Answer: It is mainly affected by the accuracy of internal sensors, the stability of signal generators, electromagnetic interference in the testing environment, and the standardization of operators.
Q: Why do some devices have a "knee point" in their volt ampere characteristic curve during the testing process? Answer: "Knee point" usually indicates the voltage point at which the device begins to enter a conducting state or undergoes other characteristic changes, and is one of its key parameters.
Q: What are the significant differences in the volt ampere characteristic curves of different types of electronic components? Answer: For example, the forward volt ampere characteristic of a diode increases approximately exponentially, while resistance is linear (Ohm's law), and their curve shapes differ greatly.
Q: What issues should be noted when testing the volt ampere characteristics of high-power power equipment? Answer: Special attention should be paid to safety protection during testing, the load-bearing capacity of the equipment, and preventing damage to the equipment. Wuhan UHV Power Technology Co., Ltd. has mature solutions for its equipment in this regard.
Q: How to use the results of volt ampere characteristic testing to optimize product design? Answer: By analyzing the test curve, deficiencies in product design can be identified, such as excessive conduction loss and unreasonable threshold voltage, which can guide engineers to make improvements.
