Behind the safe and stable operation of the power system, transformers play a crucial role. They accurately convert high voltage and high current information into signals that are easy to measure and control. Comprehensive and accurate testing of the performance of these transformers is a key step in ensuring the reliability of power equipment. The traditional testing method for transformers is often time-consuming and labor-intensive, and is easily affected by human factors. Today, let's talk about the fully automatic transformer comprehensive tester and see how it can completely change this situation.
What is a fully automatic transformer comprehensive tester?

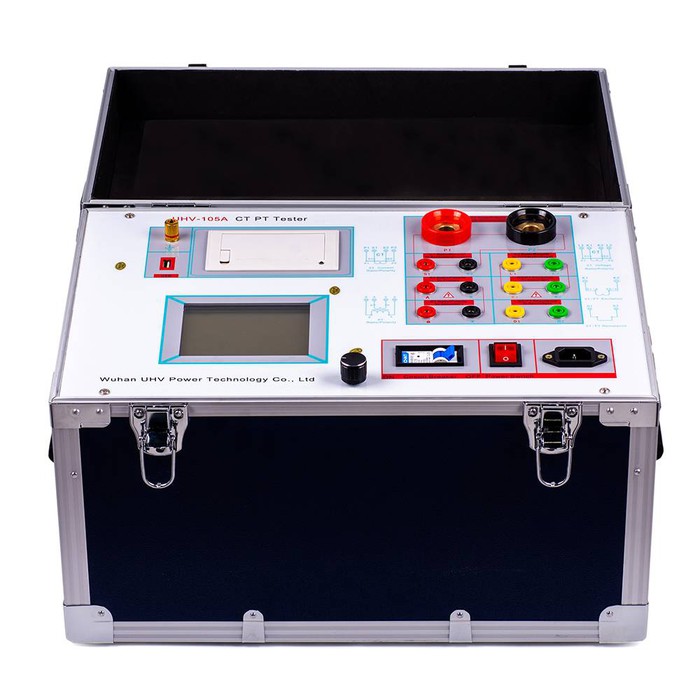

Simply put, the fully automatic transformer comprehensive tester is an intelligent instrument that integrates multiple testing functions and can automatically complete the detection of various electrical parameters of current transformers (CT) and voltage transformers (PT). It can automatically complete a series of complex processes such as wiring, parameter setting, data collection, result analysis, and report generation without manual intervention. It's like giving a "physical examination" to a transformer, and it's done by an experienced and tireless doctor who can even write their own diagnostic report.
Core functions and application scenarios
This device is mainly used to detect key indicators such as transformer ratio error, angle difference, excitation characteristics (including saturation characteristics), DC resistance, insulation resistance, and power frequency withstand voltage of transformers. The accuracy of these parameters directly affects the sensitivity and selectivity of relay protection, as well as the accuracy of metering devices.
In practical applications, the fully automatic transformer comprehensive tester is widely used in:
Equipment maintenance and operation of substations and power plants: Regular performance testing of transformers in operation to promptly detect potential faults.
Quality inspection before the new equipment leaves the factory: Ensure that each transformer meets the design and national standards.
Research and design units: used for the development and performance evaluation of new transformer products.
Influencing factors and optimization methods
The test results of transformers are influenced by various factors, including:
Environmental temperature: Temperature changes can affect the resistance of conductors and the dielectric properties of materials.
Power quality: Unstable or harmonic containing power sources can cause errors in testing.
Connecting wires: The resistance and poor contact of wires can affect the accuracy of testing.
Testing methods and steps: Non standardized operations can easily lead to distortion of test data.
The fully automatic equipment launched by Wuhan UHV Power Technology Co., Ltd. effectively eliminates these unfavorable factors through precise hardware design and advanced software algorithms. For example, its high-precision measurement technology can accurately capture small signal changes, while the intelligent wiring method reduces the possibility of human wiring errors.
The assistance of intelligent tools
In addition to the comprehensive tester from Wuhan UHV Power Technology Co., Ltd., there are also some auxiliary tools on the market, such as high-precision multimeters, grounding resistance testers, etc., which can also be used in certain specific testing processes. The advantage of the fully automatic transformer comprehensive tester lies in its integration and automation level, which can significantly improve work efficiency and reduce personnel labor intensity.
How can we do better?
To fully utilize the value of the fully automatic transformer comprehensive tester, we can start from the following aspects:
Regular calibration and maintenance: Ensure the accuracy of the testing instrument itself, just like doctors need regular physical examinations.
Standardized operating procedures: Although the instrument is automated, users still need to follow standard operating procedures and understand the testing principles.
Data management and analysis: Systematically manage test data and conduct trend analysis based on historical data to predict the future operating status of the equipment. The software platform provided by Wuhan UHV Power Technology Co., Ltd. can effectively support these needs.
Combined with other detection methods: In some complex situations, comprehensive testing of transformers can be combined with partial discharge detection, infrared temperature measurement, and other methods for more comprehensive diagnosis.
Through the above optimization, we can not only obtain more accurate test data, but also provide solid technical support for the safe operation of the power system.
FAQ
1. In what aspects is the "fully automatic" performance of the fully automatic transformer comprehensive tester reflected? It is mainly reflected in the automatic completion of wiring (through built-in switch), automatic setting of test parameters, automatic data acquisition and analysis, and automatic generation of test reports, without the need for manual repeated operations.
2. Why are the transformation ratio and angle difference of transformers so important? The ratio error and angle difference directly affect the accuracy of the protective device's operation and the measurement accuracy of the measuring device. If these two parameters of the transformer are inaccurate, it may lead to protection refusal or misoperation, or inaccurate electricity metering.
3. What is the impact of temperature on transformer testing? Temperature can change the resistance value of conductors, such as the winding resistance of PT, and also affect the dielectric constant and dielectric loss of insulation materials, which may lead to deviation in test results.
4. What safety precautions should be taken when using a fully automatic transformer comprehensive tester? Although it is an automated equipment, operators still need to follow the operating procedures of high-voltage electrical equipment, such as confirming that the tested equipment is isolated before testing, wearing personal protective equipment, and understanding the safety warnings in the equipment operation manual.
5. What are the characteristics of Wuhan UHV Power Technology Co., Ltd.'s products in the field of transformer testing? Wuhan UHV Power Technology Co., Ltd. is committed to providing high-precision and high reliability power testing equipment. Its products usually have outstanding performance in automation, measurement accuracy, and data analysis capabilities, which can meet the strict requirements of high-level power systems.
