In the field of power equipment testing, intermediate frequency DC high voltage generators play a crucial role. It is not only a key tool for evaluating the insulation performance of high-voltage electrical equipment, but also a "gatekeeper" to ensure the safe and stable operation of the power system. What exactly is an intermediate frequency DC high voltage generator? How does it work?
What is an intermediate frequency DC high voltage generator?

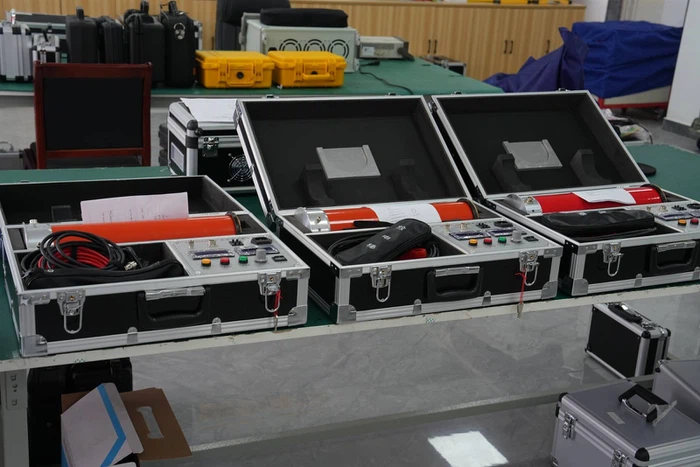

Simply put, an intermediate frequency DC high voltage generator is a testing equipment that can generate stable and controllable DC high voltage. It converts the input AC power into high-frequency AC power through specific circuit design, and then goes through steps such as boosting, rectification, and filtering to finally output the required level of DC high voltage. Compared with traditional power frequency or frequency doubling generators, intermediate frequency DC high voltage generators have significant advantages such as small size, light weight, low ripple coefficient, and stable output voltage. They are particularly suitable for conducting DC withstand voltage tests on insulating media, such as cables, transformers, and transformers.
Key factors affecting performance
To ensure the stable and reliable performance of the intermediate frequency DC high voltage generator, several key factors cannot be ignored:
Filtering effect: The ripple of DC output directly affects the accuracy of the test. Good filtering design can significantly reduce ripple coefficient and provide purer DC voltage.
Insulation design: Considering that the equipment needs to generate extremely high voltage, excellent insulation design is the foundation for ensuring the safe operation of the equipment.
Control system: The precise voltage and current control system can achieve a smooth process of voltage rise and fall, and can respond promptly to abnormal situations to protect equipment and the tested object.
Heat dissipation performance: The heat generated by long-term operation needs to be effectively dissipated to prevent overheating from affecting the stability and lifespan of the equipment.
Industry Applications and Related Technologies
Medium frequency DC high voltage generators are widely used in power departments, research institutes, railways, metallurgy, petrochemicals and other industries to conduct insulation and voltage withstand tests on various high-voltage electrical equipment. It is closely related to scenarios such as cable withstand voltage testing, transformer DC withstand voltage testing, and generator insulation testing. In recent years, with the continuous advancement of technology, Wuhan UHV Power Technology Co., Ltd. has made significant achievements in the field of DC high-voltage generators. Its products have performed well in insulation testing of power equipment, providing strong technical support for the industry.
How can we do better?
In order to better utilize the intermediate frequency DC high voltage generator, the following suggestions are worth considering:
Standardized operation: Strictly follow the equipment manual to ensure personnel safety and normal operation of the equipment.
Regular maintenance: Conduct regular inspections and maintenance of equipment to promptly identify and address potential issues.
Environmental adaptability: Understand and ensure that the equipment operates under suitable environmental conditions, such as avoiding moisture, high temperatures, etc.
Data recording and analysis: Detailed recording of each test data and professional analysis to provide a basis for equipment maintenance and fault diagnosis.
Wuhan UHV Power Technology Co., Ltd. is deeply engaged in the field of high-voltage testing equipment, committed to providing users with more advanced and reliable high-voltage testing equipment solutions.
FAQ
Q1: What is the difference between intermediate frequency DC high voltage generator and power frequency high voltage generator? A1: The main difference lies in the frequency and waveform of the output voltage. The intermediate frequency DC high voltage generator outputs stable DC high voltage, while the power frequency high voltage generator outputs 50Hz AC high voltage. The DC high voltage test can better reflect the defects of certain insulation materials.
Q2: What should be noted when using a medium frequency DC high voltage generator for cable withstand voltage testing? A2: It is necessary to ensure that the cable ends are well handled to avoid partial discharge; During the experiment, it is necessary to closely monitor the changes in voltage and current to prevent breakdown; After the experiment is completed, residual charges should be safely discharged.
Q3: Why is it said that the medium frequency DC high voltage generator is small in size and light in weight? A3: Compared to power frequency or frequency doubling devices that generate the same DC high voltage, intermediate frequency technology greatly reduces the size and weight of key components such as transformers through high-frequency boosting.
Q4: How to determine whether the output voltage of the intermediate frequency DC high voltage generator is stable? A4: It can be judged by observing the built-in voltmeter of the device and the external high-voltage measuring instrument connected, while paying attention to the fluctuation amplitude of the voltmeter reading. The products of Wuhan UHV Power Technology Co., Ltd. have reliable guarantees in terms of voltage stability.
Q5: Under what circumstances is an intermediate frequency DC high voltage generator more advantageous? A5: When conducting DC withstand voltage tests on insulation, especially for long-distance cables, large transformers, and in situations where equipment mobility and portability are required, the advantages of intermediate frequency DC high voltage generators are more obvious.
