HTY5832

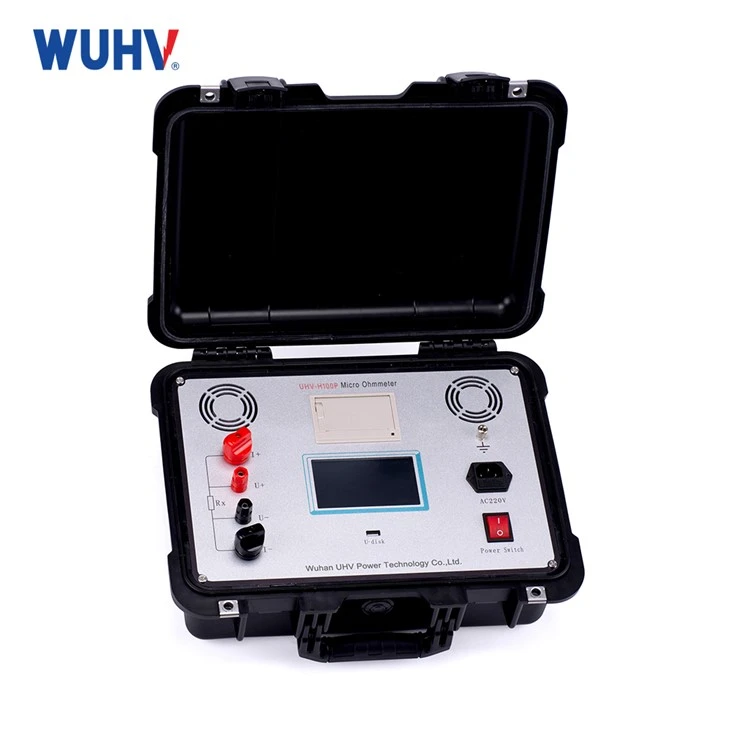

The UHV-H100P high-precision contact resistance test set is an electronic instrument specifically designed for accurately measuring low-value resistances. Its primary application is measuring contact resistance or loop resistance in electrical systems, including switches, circuit breakers, disconnect switches, busbar connections, cable joints, and similar equipment.

Technical Parameters

Measuring range	50A 0～10mΩ
Measuring range	100A 0～5mΩ
Resolution	0～99.99μΩ, 0.01μΩ
Resolution	100.0～10000.0μΩ, 0.1μΩ
Test current	DC50A, 100A two-speed fixed output
measurement accuracy	±(0.5% rd+2d)
Operating Time Options	Quick, 10s, 30s, 60s
Display method	4-inch touchscreen
communication mode	U disk dump
Working power	AC220V±10% 50Hz
Total power	600W
Maximum storage record	200
working environment	temperature: -10℃～40℃, humidity：≤80%RH
Dimensions	390×300×150 mm³
Weight	6kg(No attachments)

Significant product advantages

266

1. Ensure the safe operation of equipment: An increase in circuit resistance is the main cause of equipment overheating or even burning out. This contact resistance test instrument supplier can directly detect this hidden danger and prevent it from developing into a major safety accident due to poor contact.
2. High precision and strong anti-interference ability: By using the DC voltage drop method (such as 100A constant current source), loop resistance tester manufactures can effectively overcome the interference of contact potential, accurately measure micro ohm level (μ Ω) resistance, and the results are reliable.
3. Improve operation and maintenance efficiency: The testing process is fast and simple, which can intuitively and quantitatively reflect the connection quality, provide accurate data support for status maintenance, avoid blind disassembly and excessive maintenance, and significantly improve work efficiency.

Primary Applications

1. Power system:

Power plants, substations, and converter stations: circuit resistance testing for high/medium voltage circuit breakers (SF6, vacuum), isolating switches, GIS composite appliances, busbars, bushings, grounding switches, etc.

Transmission lines: Contact resistance testing of cable joints and clamps.

Distribution network: Contact resistance testing of distribution switchgear, load switches, fuses, etc.

2. Manufacturing industry: Factory testing and quality inspection of switch equipment manufacturers' products.

3. Industrial users: Preventive testing of internal power equipment in large factories, mines, petrochemical enterprises, etc.

4. Rail transit: Testing of traction power supply system switchgear for high-speed trains and subways.

5. Research and quality inspection institutions: verification of relevant standards, research on material resistance characteristics, etc.

6. Other occasions that require precise measurement of low resistance values, such as welding point resistance, metal material resistivity (requiring fixture coordination), etc.
