Transformer Oil BDV Tester
Product Introduction:
Transformer Oil BDV Tester is my company all the scientific and technical personnel, in accordance with the relevant provisions of the national standard GB507-86 and standard DL-474 - 4-92DL/T596-1996, to play their own advantages, after several field tests and long-term unremitting efforts, meticulous research and development of high accuracy, full digital instrument industry. Transformer Oil BDV Tester is simple and easy to operate. Due to the adoption of automatic digital microcomputer control, the measurement precision is high, the anti-interference ability is strong, and it is safe and reliable.
Transformer Oil BDV Tester (Single Cup) Technical Parameters
|
Booster capacity |
1.5kVA |
|
Booster speed |
2.0，2.5，3.0，3.5kv/s(adjustable) |
|
Output voltage |
0~80kV |
|
Voltage accuracy |
±(3% reading+2 words) |
|
Power distortion rate |
＜1% |
|
Display mode |
Large screen LCD display |
|
Electrode gap |
Standard 2.5mm |
|
Installation dimensions |
409×393×388(mm) |
|
Weight |
29kg |
Conditions of Use
|
Environment temperature |
0℃~+40℃ |
|
Relative humidity |
＜85% |
|
Power supply |
AC 220V±10%,50Hz±5Hz |
|
Power consumption |
＜200W |

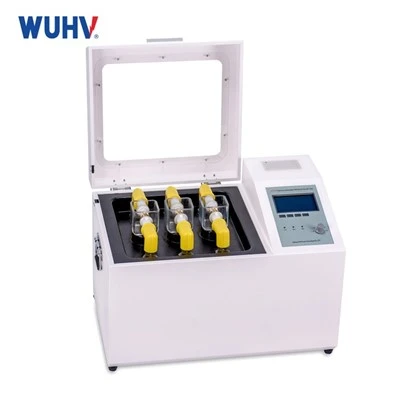

Transformer Oil BDV Tester (Three Cups)
Technical Parameters
|
Booster capacity |
1.5kVA |
|
Booster speed |
2.0kV/s, 2.5kv/s, 3.0kv/s, 3.5kv/s |
|
error: 0.2 kv/s |
|
|
The output voltage |
0~80kV (optional) |
|
Voltage accuracy |
±(2% reading +2 words) |
|
Power distortion rate |
＜1% |
|
Electrode gap |
standard 2.5 mm |
|
Number of test |
6 times (1-6 times optional) |
|
Let stand time |
5 min (1-9min optional) |
|
Dimensions |
670mm×420mm×410mm |
|
Weight |
38kg |
Conditions of Use
|
Environment temperature |
0～40℃ |
|
Relative humidity |
≤85% |
|
Working power supply |
AC220V±20% |
|
Power frequency |
50Hz(1±10%) |
|
Power |
＜200W |
Product Characteristics
Stable and Reliable Operation
Controlled by a high-capacity microcontroller with a built-in watchdog circuit to prevent system crashes, ensuring stable and dependable performance.
01
Multiple Testing Options
Supports GB1986, GB2002, and custom testing modes, offering flexibility to meet diverse user requirements.
02
High-Precision Measurement
Features a one-piece special glass oil cup that eliminates oil leakage issues, plus a unique high-voltage sampling design that feeds test values directly into the A/D converter for improved accuracy.
03
Advanced Protection Mechanisms
Includes overcurrent, overvoltage, and short-circuit protection, along with strong anti-interference capability and excellent electromagnetic compatibility for safe and reliable operation.
04
Portable and User-Friendly Design
Compact and lightweight construction allows easy transportation and convenient use both indoors and outdoors.
05
Product Advantages
Prevents Power Failures - It detects moisture and contaminants in the oil before they cause internal arcing or short circuits, avoiding unexpected transformer breakdowns.
Ensures Operator Safety - Equipped with automatic arc quenching and safety interlocks, it protects personnel from high-voltage hazards during the test.
Saves Time & Reduces Errors - The fully automatic operation eliminates manual guesswork, delivering fast, accurate, and repeatable results in less time.
Lowers Maintenance Costs - It enables condition-based maintenance (test first, treat later), preventing unnecessary oil changes and extending transformer life.
Easy to Use Anywhere - Portable models allow for on-site testing at substations or remote locations, complying with international standards like IEC 60156.
Application of Transformer Oil BDV Tester
Power Transformers (Substations & Grids)
Regularly tests insulating oil in large power transformers to prevent grid failures and unplanned outages.
Distribution Transformers (Poles & Pad-mounted)
Ensures reliability of local transformers that supply homes and businesses, especially in aging networks.
Railway Traction Transformers
Maintains oil quality in transformers powering electric trains, preventing delays and safety hazards.
Wind Farm & Renewable Energy Transformers
Monitors oil in remote, harsh environments where vibration and moisture ingress are common.
Industrial & Manufacturing Plants
Tests transformers in steel mills, chemical plants, and factories to avoid costly production stoppages.
Circuit Breakers & High-Voltage Bushings
Checks oil-filled switchgear and bushings for dielectric strength, ensuring proper arc extinction.
Transformer Manufacturing & Repair Shops
Used for quality control of new oil and reconditioned oil before transformers are shipped or reinstalled.
Utility Maintenance & Field Service Teams
Portable testers enable on-site diagnostics at substations, offshore platforms, and remote locations.
The Transformer Oil BDV Tester evaluates the ability of insulating oil to withstand high voltage before breakdown occurs. Transformer Oil BDV Tester utilizes advanced technologies, including central processing units and large-scale integrated circuits to perform fully automated testing. Additionally, test results can be printed using a built-in micro printer.
