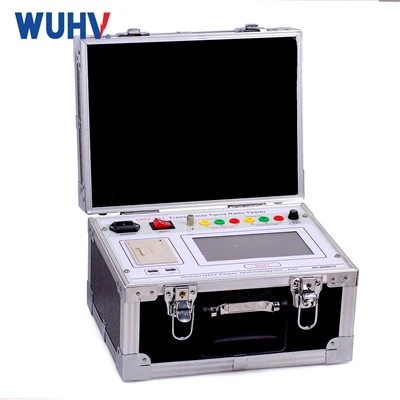

Transformer Turns Ratio Testers

Transformer Turns Ratio Testers are precision instruments engineered to measure turns ratio, ratio deviation, and winding connections during manufacturing inspection, commissioning, and preventive maintenance. Fully compliant with international testing standards-including IEC 60076-1, IEEE C57.12.90, and ANSI requirements-these testers deliver exceptional accuracy and field reliability.

Why Transformer Turns Ratio Testing Matters

Prevent Equipment Failures

Detects hidden faults-such as shorted turns, incorrect tap connections, and winding deformations-prior to operation.

Streamline Quality Control

Ensures every unit leaving the factory meets exact design specs and international standards.

Reduce Commissioning Risks

Verifies phase angles, vector groups, and tap accuracy on-site before energizing high-value power assets.

Extend Asset Longevity

Tracks condition changes over time to support proactive, condition-based maintenance programs.

Key Features & Advantages

High Precision Measurement

Measures primary-to-secondary voltage relationships and phase angles with exceptional accuracy (up to ±0.1%) across a wide ratio range (0.8 to 10,000).

Fully Automatic Operation

Eliminates manual calculation errors with automated measuring, ratio deviation computing, vector group identification, and instant digital result display.

Portable & Rugged for Field Use

Built with a compact, shock-resistant enclosure, intuitive user interface, and rapid cable connections-ideal for harsh substation and outdoor environments.

Integrated Data Management & Reporting

Features internal memory for storing thousands of test records, seamless USB/PC export, and auto-generated, audit-ready compliance reports.

Advanced Operational Safety

Includes built-in reverse-connection protection, over-voltage safeguards, and short-circuit protection to protect both operators and equipment.

Supported Transformer Types

Power Transformers: High-voltage testing during production, substation commissioning, and routine maintenance.

Distribution Transformers: Fast, high-volume batch testing during manufacturing and field inspections.

Dry-Type Transformers: Reliable ratio verification for commercial, industrial, and indoor power systems.

Instrument Transformers (PTs & CTs): Precise ratio and phase accuracy checks for metering and protection systems.

Target Applications

Factory Acceptance Testing (FAT)

End-of-line verification to confirm winding parameters, tap settings, and build consistency before dispatch.

Substation Commissioning

Pre-energization checks in grid substations, power plants, and solar/wind renewable energy projects.

Routine Maintenance & Troubleshooting

Periodic diagnostics during scheduled outages to identify tap changer wear, contact damage, or internal faults.

Buyer's Selection Guide

Accuracy & Measuring Range: Confirm accuracy levels (e.g., ±0.1%) and ratio limits required for your specific transformer portfolio (including PTs/CTs).

Standard Compliance: Ensure alignment with global standards like IEC 60076 and IEEE C57.

Environment & Portability: Select rugged, lightweight units for field service, or benchtop models for dedicated factory production lines.

Data Traceability: Look for onboard storage, software compatibility, and automated report generation to simplify quality documentation.

Quality Assurance & Compliance

Every test instrument undergoes strict quality control before shipment:

Incoming component testing & burn-in inspection

Multi-point calibration against traceable standards

Comprehensive electrical safety and performance verification

Factory Acceptance Testing (FAT) to guarantee out-of-the-box reliability

FAQ

Q: What is a Transformer Turns Ratio Tester used for?

A: A Transformer Turns Ratio Tester is used to measure the ratio between transformer primary and secondary windings. It helps verify transformer design accuracy, winding connections, and operational conditions.

Q: Why is transformer turns ratio testing important?

A: Ratio testing confirms whether the transformer winding ratio matches the specified design value. It helps identify connection errors, manufacturing issues, and possible transformer abnormalities.

Q: Which transformers can be tested with a transformer ratio tester?

A: Transformer ratio testers are commonly used for power transformers, distribution transformers, dry-type transformers, voltage transformers, and current transformers.

Q: Can transformer ratio testers be used for field testing?

A: Yes. Portable transformer ratio testers are designed for applications such as substations, power plants, industrial facilities, and transformer maintenance sites.

Q: What are the advantages of automatic transformer ratio testers?

A: Automatic testers reduce manual calculation work, improve testing consistency, shorten inspection time, and simplify test record management.

Q: What should buyers consider when selecting a transformer ratio tester?

A: Buyers should evaluate measurement accuracy, transformer compatibility, testing environment, data management functions, safety features, and technical support.

Q: How often should transformer ratio testing be performed?

A: Testing frequency depends on transformer type, operating conditions, maintenance requirements, and industry practices. Common testing periods include manufacturing inspection, commissioning, scheduled maintenance, and after transformer repairs.

Q: Can transformer ratio testing help identify transformer faults?

A: Transformer ratio testing can help detect abnormal winding conditions, incorrect connections, and tap changer issues, providing useful information for troubleshooting and preventive maintenance.

As one of the leading transformer turns ratio testers manufacturers and suppliers in China, we warmly welcome you to buy high-grade transformer turns ratio testers made in China here from our factory. For price consultation, contact us.
