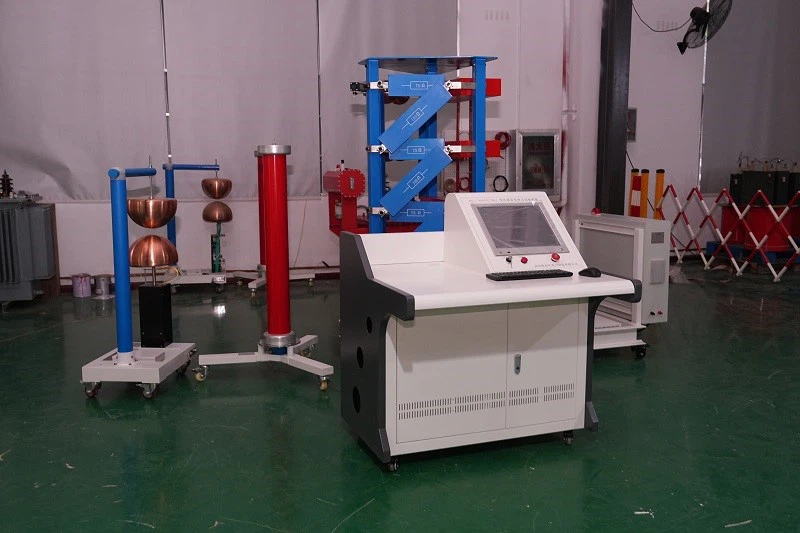

Product Introduction
The lightning impulse voltage tester is a professional device with a luxurious aluminum alloy outer box design. The working principle is based on the Marx circuit, which generates high-voltage shock waves by charging and discharging multi-stage capacitors in parallel to simulate lightning waveforms for non-destructive testing of electrical equipment.
Technical Parameters
|
Charging voltage |
Tuning range |
0 ~ 100kV |
|
Scope of work |
10.0~100.0kV |
|
|
Tuning bias |
≤±1% |
|
|
Instability |
≤±1% |
|
|
Adjustment discrimination |
0.1kV |
|
|
Charging time |
Tuning range |
30~180s |
|
Adjustment discrimination |
1s |
|
|
Alarm delay |
2s |
|
|
Number of pressurizations |
Tuning range |
1~999 |
|
Protection settings |
Overcurrent protection value |
Can be set |
|
Overvoltage protection value |
Can be set |
|
|
Dynamic Charge Protection |
Optional |
|
|
Trigger the pulse |
＞ 15kV, the rise time is less than 100ns, and the polarity can be switched |
|
|
Output shock stability |
＞99% |
|
Product Features
High Stability Output
The lightning impulse voltage tester uses advanced voltage stabilization technology and has a built-in high-precision voltage stabilization module. The voltage fluctuation coefficient under standard testing is less than ±0.5%.
Precise Voltage Control
The lightning impulse voltage tester uses advanced microprocessor control technology to accurately adjust the impulse voltage amplitude, wavefront time and half-peak time. The wavefront time adjustment accuracy is ±0.1μs, and the half-peak time adjustment accuracy is ±1μs, which can accurately simulate the standard lightning impulse waveform.
FAQS
How accurate is the high-voltage divider?
UHV uses laboratory-grade impulse voltage dividers designed for high-precision measurements.
Key features include:
High measurement accuracy
Excellent linearity
Long-term stability
Traceable calibration capability
This ensures reliable performance throughout the service life of the system.
Can the Lightning impulse voltage tester be customized for transformer manufacturers?
Certainly.
Transformer impulse testing is one of the main applications of our systems.
We can customize:
Rated voltage level
Energy rating
Number of generator stages
Wave-shaping network
Test hall layout
Control and measurement systems
to suit the requirements of different transformer production facilities.
How long does installation and commissioning take?
The timeframe depends on the system size and site conditions.
Typical schedules are:
Small systems: 3–5 days
Medium-sized systems: 1–2 weeks
Large EHV/UHV systems: 2–4 weeks
Our engineers provide complete on-site installation, commissioning, and acceptance support.
Do you provide calibration certificates?
Yes.
We can supply:
Factory test reports
Calibration reports
Traceable calibration certificates
Third-party calibration services upon request
These documents help streamline customer acceptance and quality audits.
What after-sales support does UHV provide?
We offer comprehensive technical support throughout the entire lifecycle of the lightning impulse voltage tester, including:
Online technical assistance
Remote troubleshooting
Software updates and upgrades
Spare parts supply
Operator training
Preventive maintenance guidance
Our engineering team is always available to help customers keep their lightning impulse voltage testers running reliably and efficiently.
