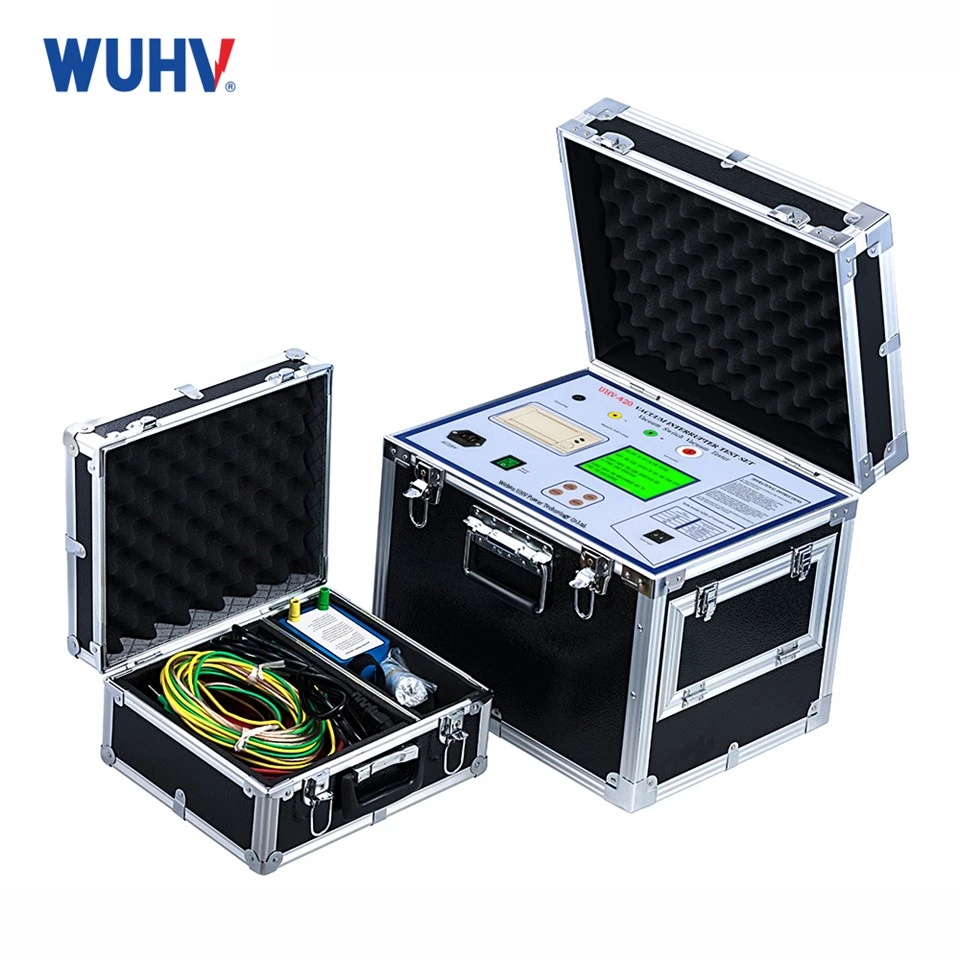

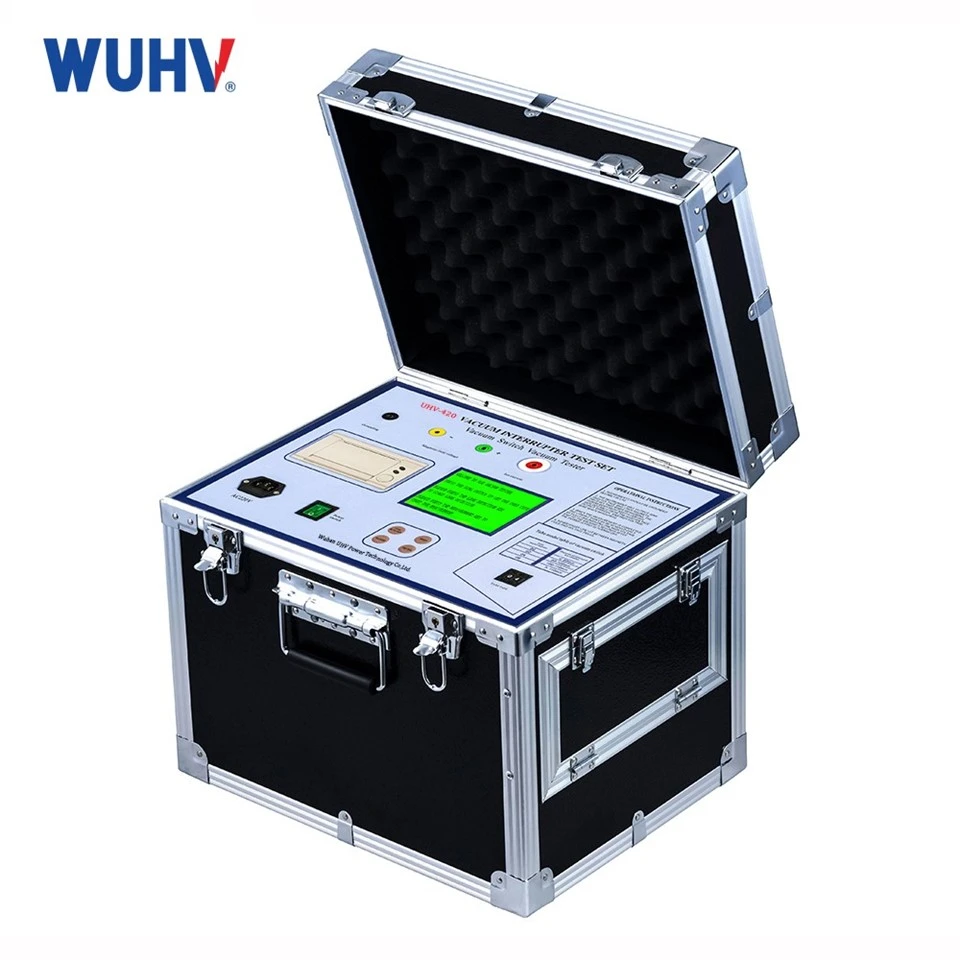

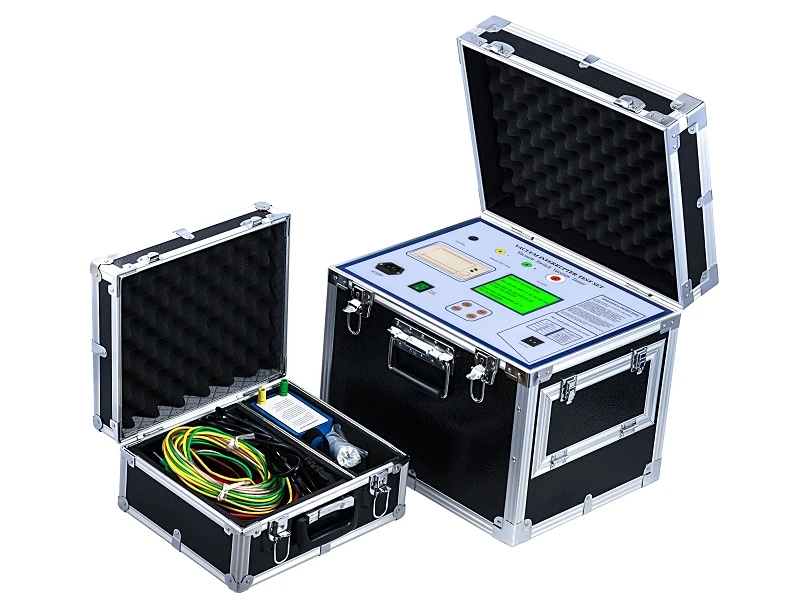

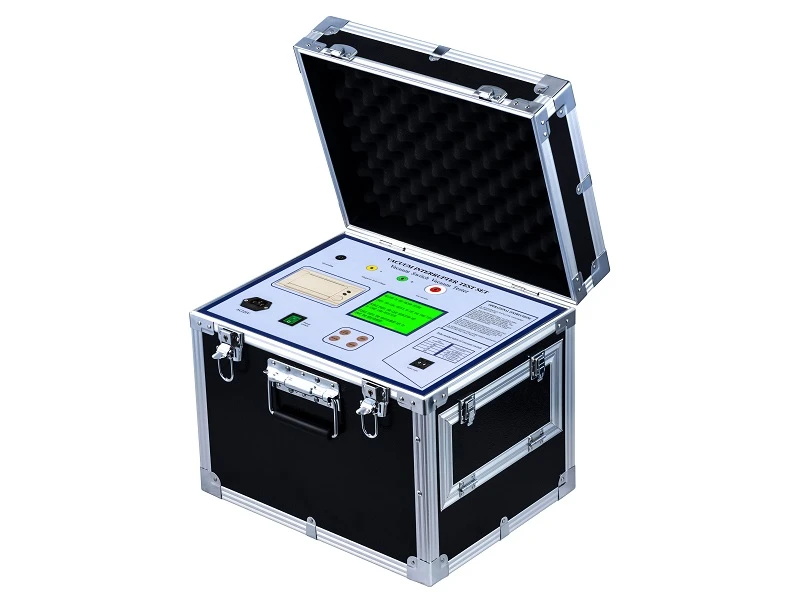

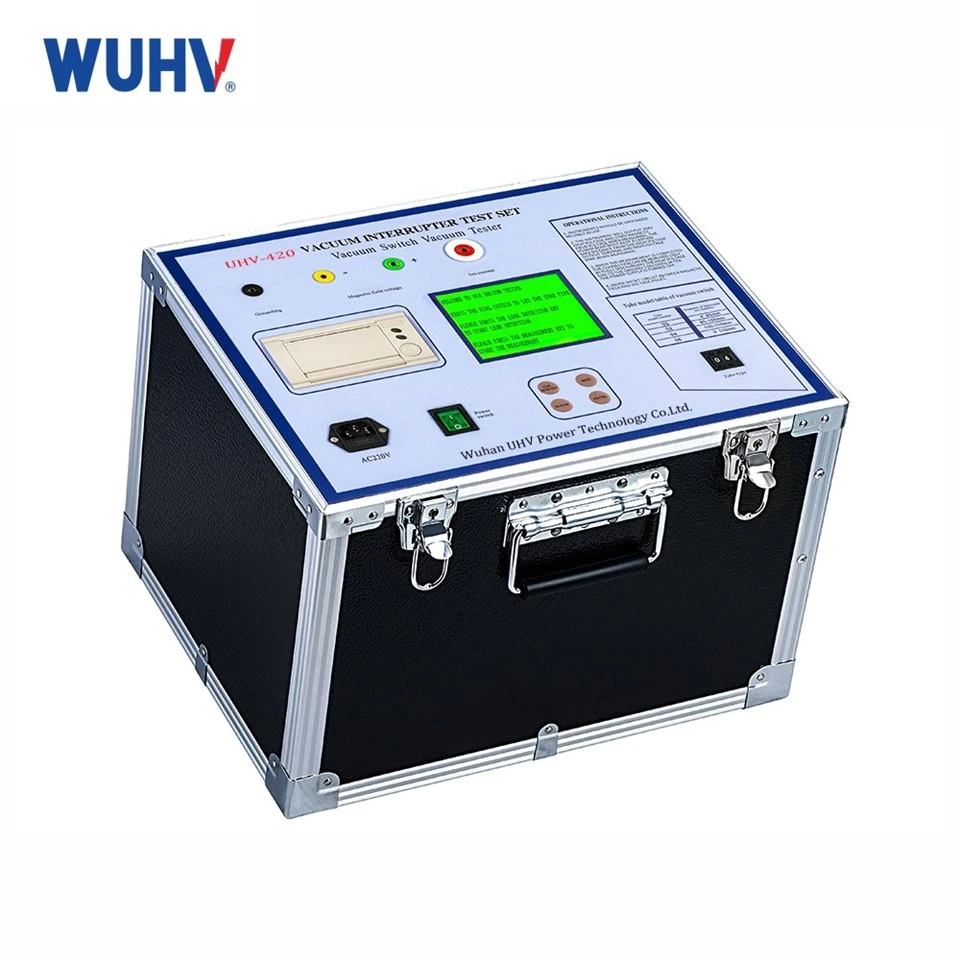

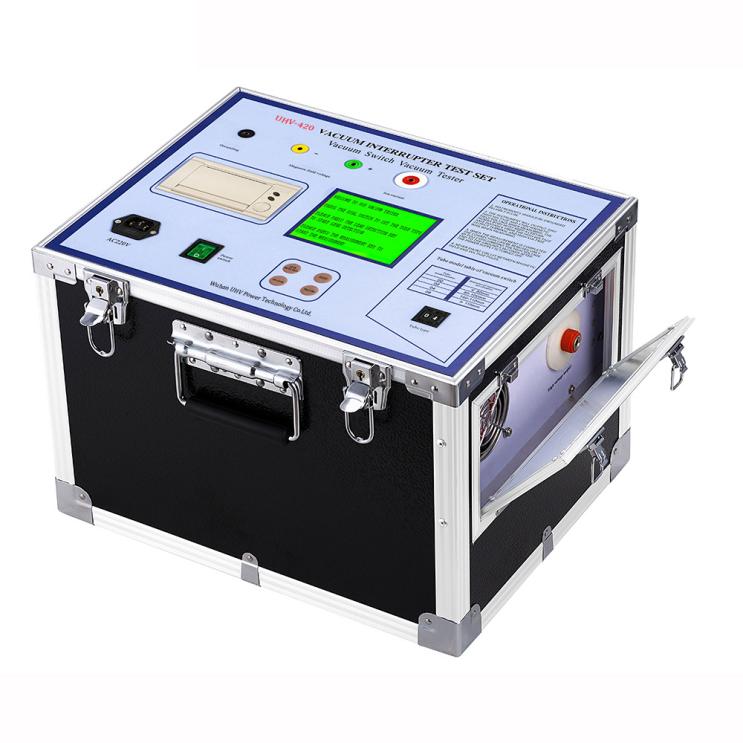

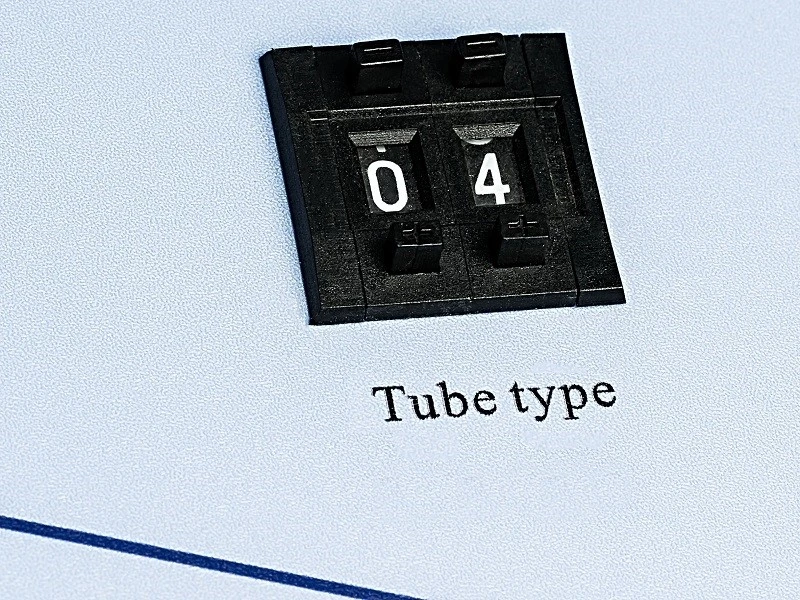

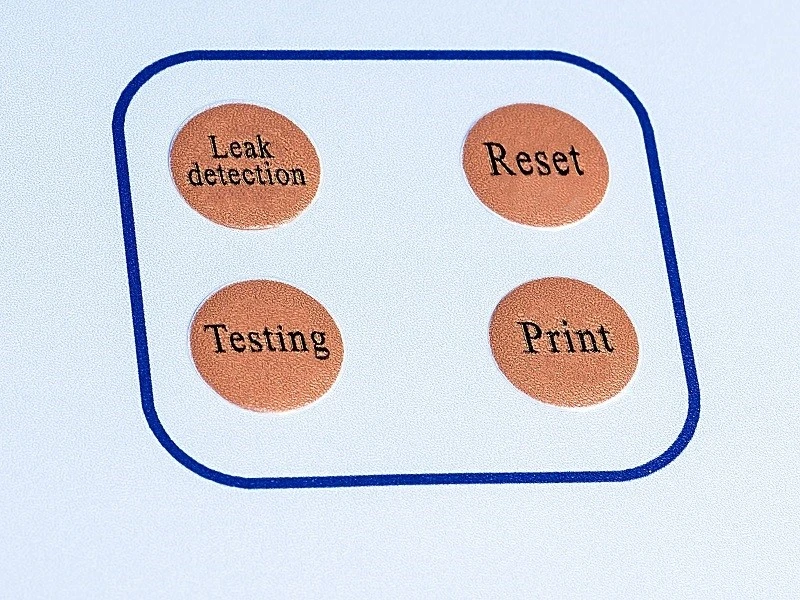

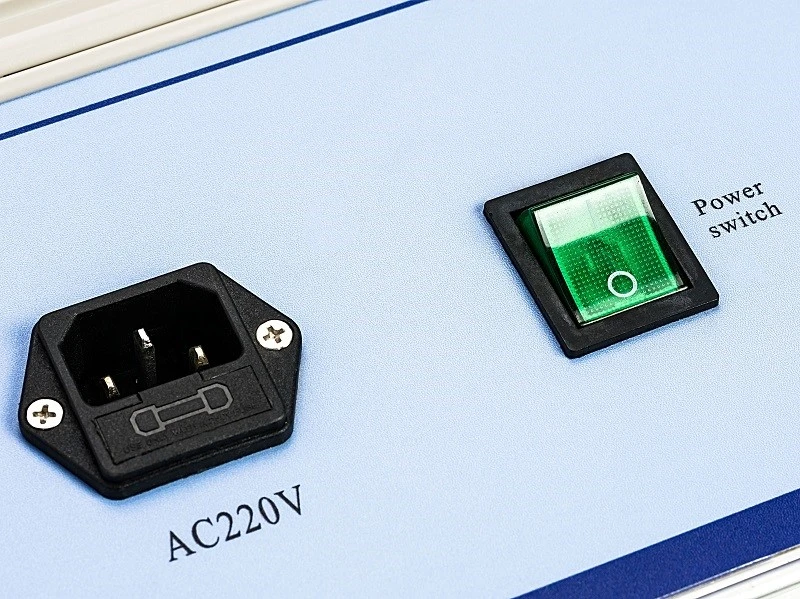

Product Introduction
As an indispensable testing equipment in the power system, the core function of the vacuum interrupter tester is to accurately measure the vacuum degree of the vacuum interrupter. The tester adopts the advanced magnetron discharge principle, applies pulsed high voltage to the interrupter and detects the generated ion current, so as to accurately calculate the vacuum degree.
Product Features
Stable Electric Field Output
The vacuum interrupter tester can output 20 volts, accurately simulating the electric field environment of the vacuum interrupter when it is working, and the electric field output is stable, ensuring accurate test results.
Efficient Magnetic Field Operation
The magnetic field voltage of the vacuum interrupter tester reaches 1600 volts, and the strong magnetic field generated can deeply detect the performance of the vacuum interrupter in a strong magnetic field environment.
High-precision Detection Performance
The vacuum interrupter tester adopts advanced signal processing algorithms, and the vacuum degree detection accuracy reaches ±0.1Pa, which can accurately detect changes in the vacuum state of the interrupter.
Technical Parameters
| Test object | Various types of vacuum switch tubes |
| Test method | Non-disassembly measurement of vacuum tubes using a new excitation coil |
| Scope of application | This instrument is a multi-purpose machine, which can measure various types of vacuum switches. |
| Measuring range | 10-5～10-1 Pa |
| measurement accuracy | 10-5～10-4 Pa,10% |
| 10-4～10-3 Pa,10% | |
| 10-3～10-2 Pa,10% | |
| 10-2～10-1 Pa,10% | |
| Magnetic field voltage | 1700V |
| Pulsed electric field high voltage | 30kV |
| Switch tube opening distance when testing
vacuum |
Normal use of open distance |
| Use environment | -20℃~40℃ |
| Host weight | 24kg |
| Dimensions | 410×320×370mm3 |
| Sampler | Magnetron coil |
How Reliable Are UHV Vacuum Interrupter Test Results?
Reliability is one of the most important factors for power plant maintenance teams when evaluating vacuum circuit breakers.
UHV Vacuum Interrupter Test Set uses a proven magnetron discharge testing method combined with advanced digital signal processing technology to ensure dependable measurements.
Key advantages include:
Non-destructive testing
Stable measurement performance
Automatic test result calculation
Reduced influence from operator experience
Consistent evaluation of vacuum interrupter condition
This allows maintenance engineers to make maintenance decisions based on accurate and trustworthy test data.
How Good Is the Test Repeatability?
UHV instruments are designed to deliver highly repeatable results under the same testing conditions.
Features that support repeatability include:
High-precision data acquisition circuits
Intelligent signal processing algorithms
Automatic measurement procedures
Stable hardware architecture
For power plants conducting periodic inspections, repeatable test results are essential for tracking equipment condition changes over time and identifying early signs of vacuum deterioration.
Can the Instrument Maintain Long-Term Stability?
Yes.
Power plants often require equipment that can operate reliably for many years under demanding maintenance schedules.
UHV Vacuum Interrupter Test Set is built with:
Industrial-grade electronic components
High-quality insulation materials
Optimized circuit design
Durable mechanical structure
Benefits include:
Consistent measurement performance
Reduced drift over time
Reliable operation during routine maintenance programs
Lower long-term maintenance costs
This ensures dependable performance throughout the instrument's service life.
What Calibration Support Does UHV Provide?
Accurate testing depends on proper calibration.
UHV recommends periodic calibration according to customer maintenance procedures and local metrology requirements.
We provide:
Factory inspection before shipment
Factory test reports
Product quality certificates
Calibration-related documentation upon request
Technical guidance for periodic verification
Customers can also send instruments to accredited calibration laboratories to maintain measurement traceability and compliance with internal quality systems.
Does the Tester Support Reporting and Data Management?
Yes.
UHV Vacuum Interrupter Test Set includes comprehensive data management functions that help power plants maintain complete testing records.
Available functions include:
Automatic test result storage
Historical data review
USB data export
PC software support

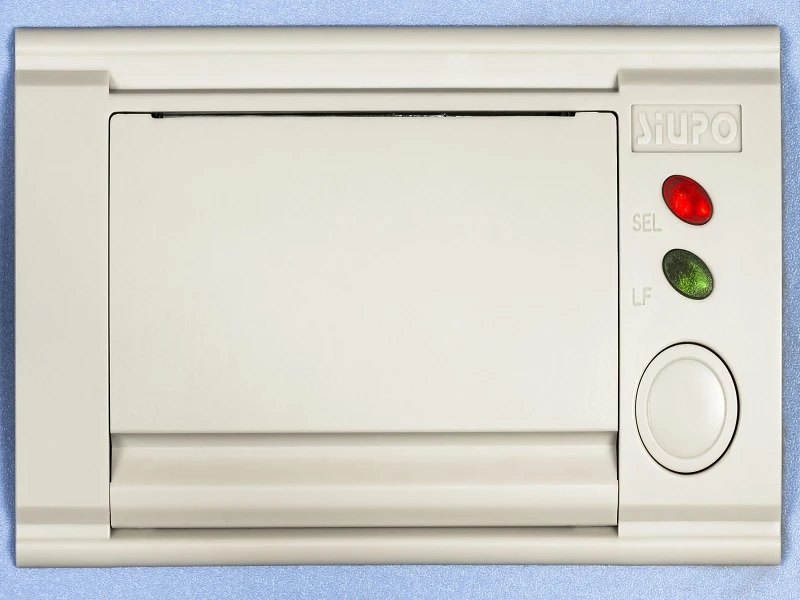

Report generation
Equipment condition tracking
These features allow maintenance teams to:
Compare historical test results
Monitor vacuum interrupter condition trends
Maintain audit-ready maintenance records
Support condition-based maintenance programs
The reporting functions simplify documentation and improve maintenance efficiency across large generating facilities.
Why Power Plants Choose UHV
Proven magnetron discharge measurement technology
Reliable and repeatable test results
Long-term measurement stability
Factory testing and calibration support
Comprehensive data storage and reporting capabilities
Suitable for routine maintenance and predictive maintenance programs
Professional technical support throughout the equipment lifecycle
UHV Vacuum Interrupter Test Set helps power plants improve maintenance efficiency, reduce unexpected outages, and ensure the long-term reliability of vacuum circuit breakers and switchgear systems.
