Product introduction

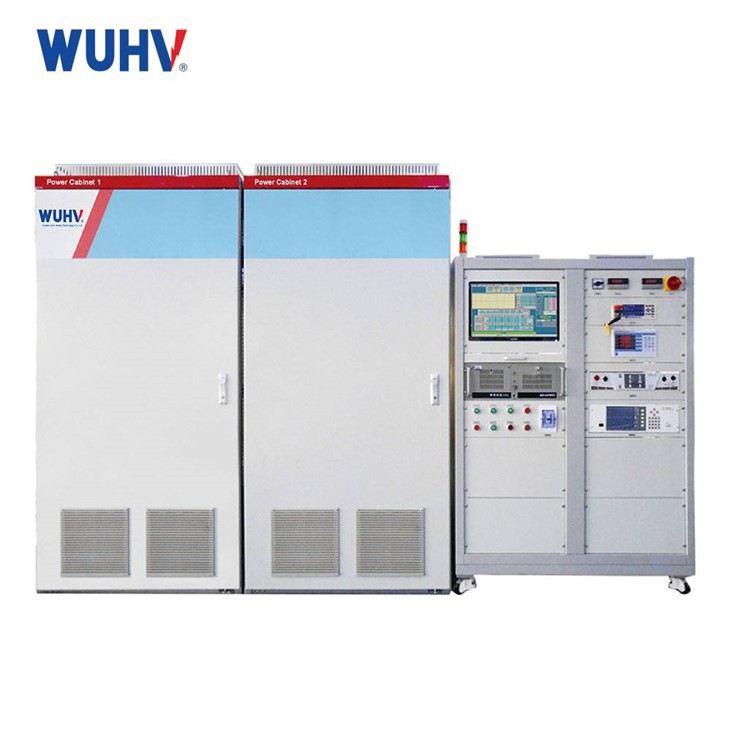

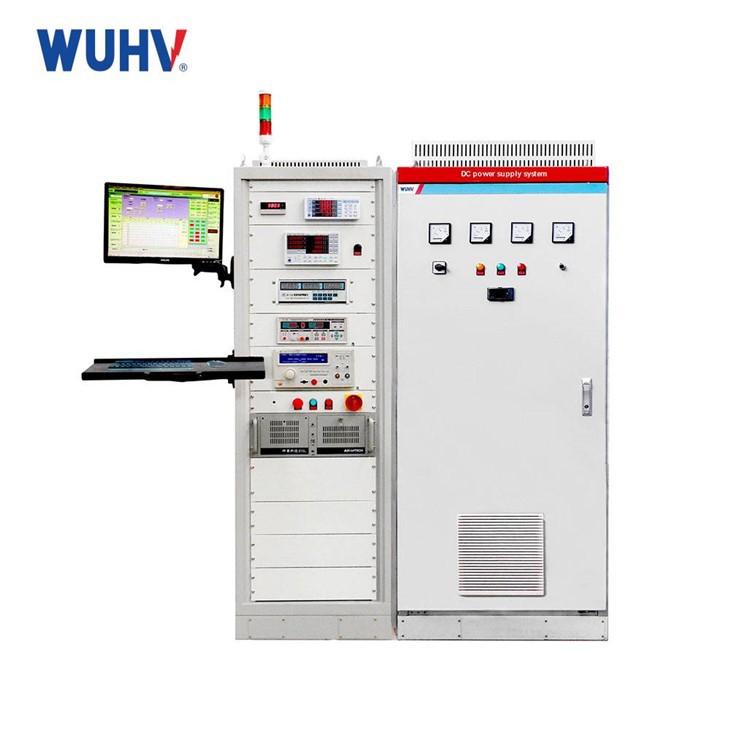

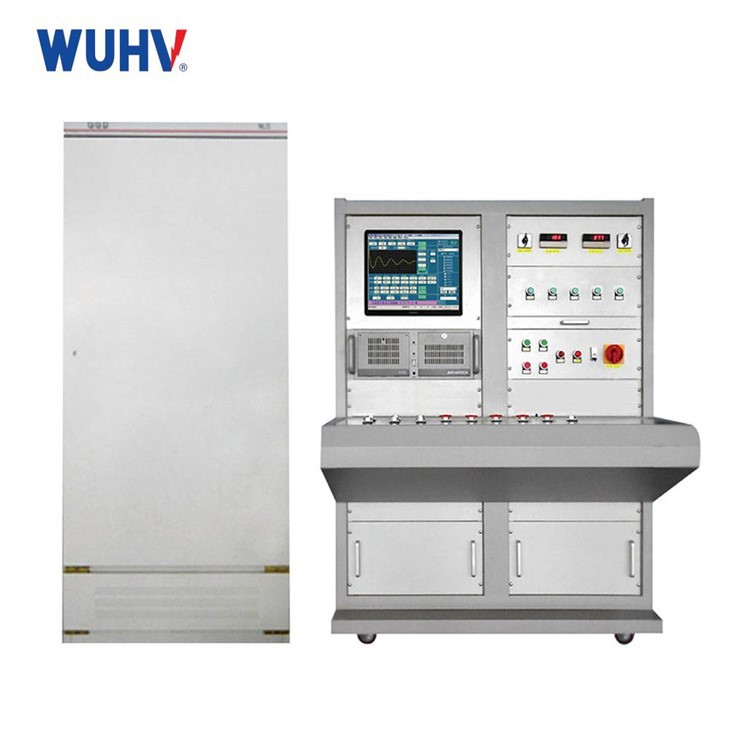

The UHV-316C motor comprehensive test bench is mainly applicable to the factory inspection of single-phase and three-phase small and medium-sized motors, test bench equipped with a test variable frequency power supply. Its main functions include DC resistance test, insulation resistance test, surge inter-turn test, electrical parameter test and power frequency withstand voltage test. The system can automatically determine whether the motor is qualified based on standard parameters.
Product Features
1.Displays test results simultaneously for convenient data viewing, with data storage and print record functions.
2.Allows storage of standard motor parameters.
3.Supports simultaneous testing of multiple motors.
4.Features high precision, fast testing speed, strong anti-interference capability, easy operation, flexibility and reliability.

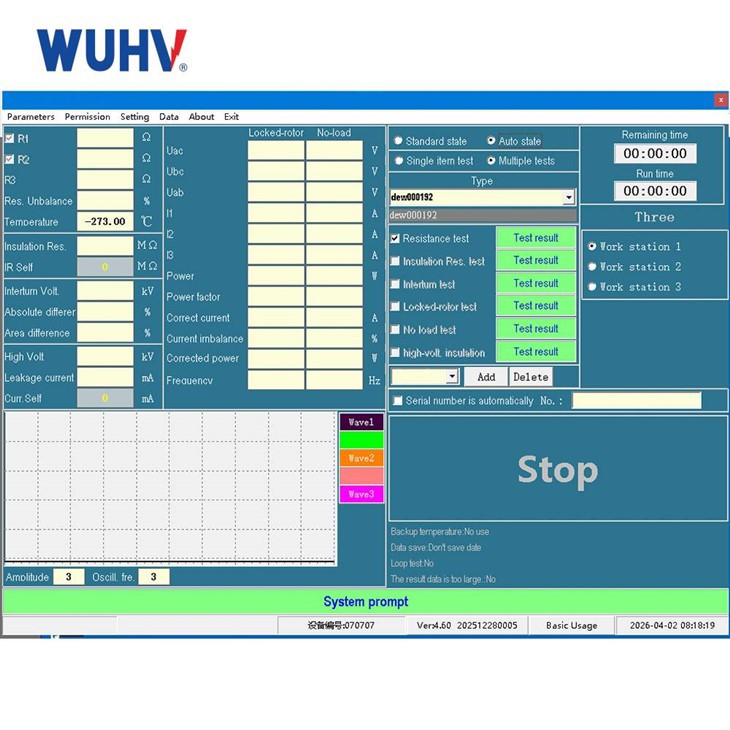

5.Adopts a Windows-based system for automatic judgment of motor qualification. Modular structure with independent modules facilitates maintenance and calibration.
Technical Parameters
(The customer shall provide the rated voltage and rated frequency of the test motor.)
|
Test item |
Measuring range |
Accuracy |
Description |
|
|
Temperature |
-40～150℃ |
±1℃ |
Ambient temperature measurement |
|
|
DC Resistance |
0.01～2000Ω |
Class 0.2 |
6 measuring ranges, automatic temperature compensation |
|
|
Insulation Resistance |
DC 500V/ 1～500MΩ |
Class 5.0 |
Automatic background deduction |
|
|
Inter-turn Test |
400～3000Vp |
Class 5.0 |
Wavefront time 0.2μs, automatic judgment of adjacent turn-to-turn conditions at 1/200 turns |
|
|
Power Frequency Withstand Voltage |
Withstand voltage |
AC 400～3000V |
Class 2.0 |
1~ 60 seconds settable |
|
Leakage current |
1～100 mA |
Automatic background deduction, with breakdown protection |
||
|
Electrical Parameter Test |
Current |
0.1A～100A 50A～600A |
Class 0.5 |
|
|
Voltage |
30～750V |
Class 0.5 |
||
|
Frequency |
50/60Hz (Asynchronous) |
|||
