Product introduction

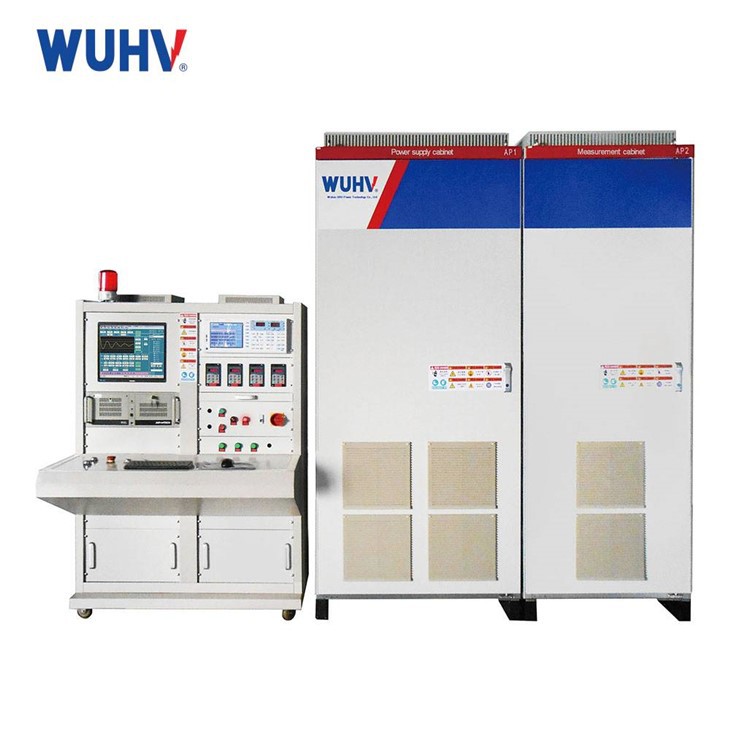

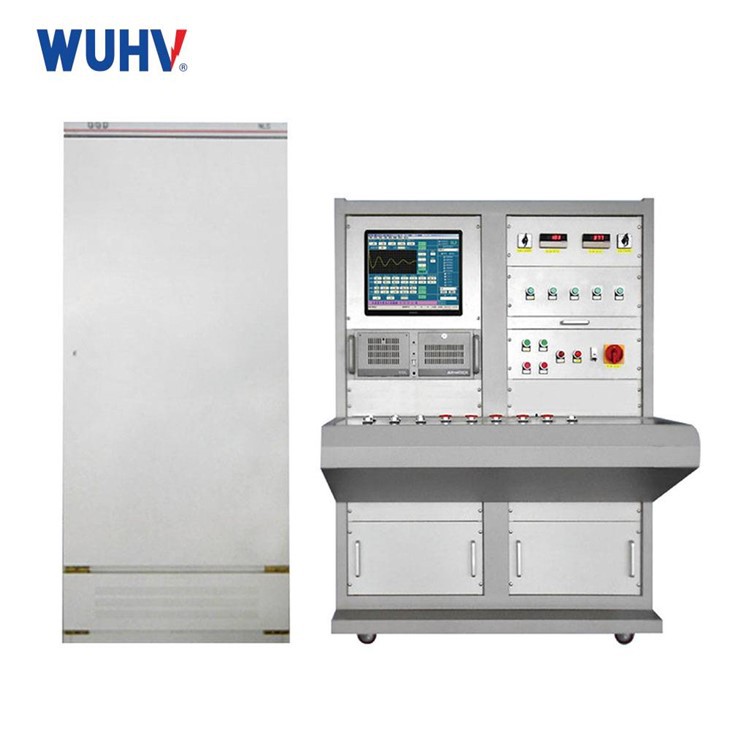

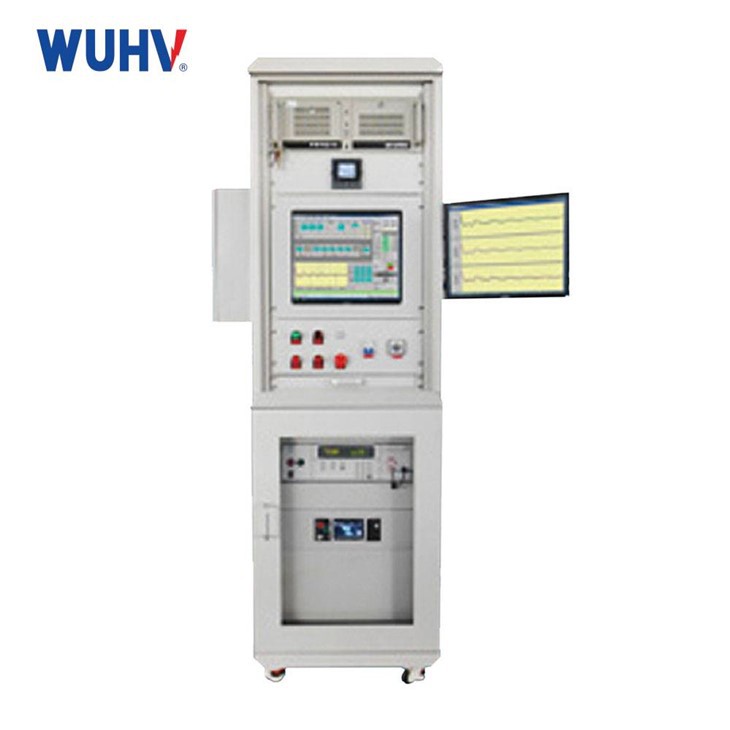

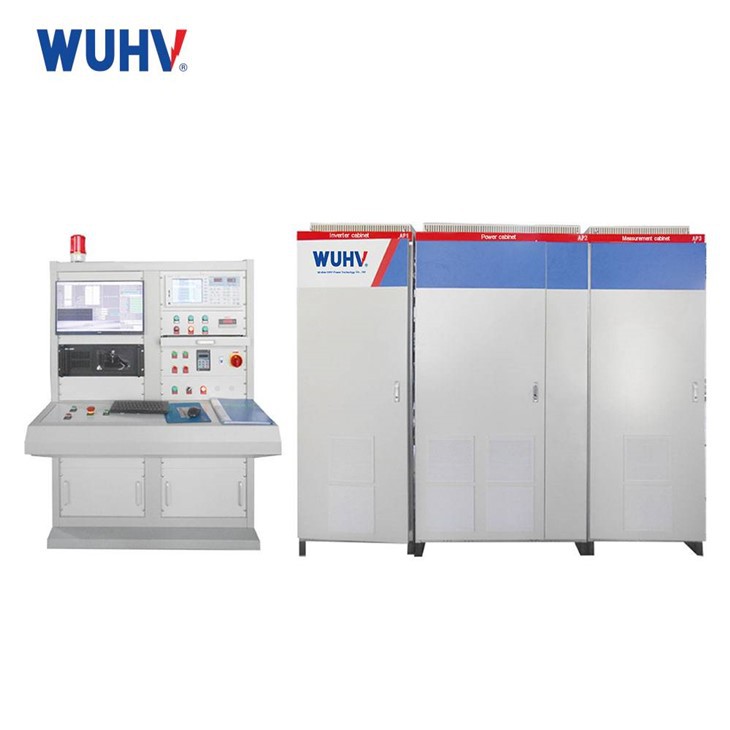

The UHV-316C motor comprehensive test bench is mainly applicable to the factory inspection of single-phase and three-phase small and medium-sized motors, test bench equipped with a test variable frequency power supply. Its main functions include DC resistance test, insulation resistance test, surge inter-turn test, electrical parameter test and power frequency withstand voltage test. The system can automatically determine whether the motor is qualified based on standard parameters.
Product Features of Asynchronous Motor Test Bench
1.Displays test results simultaneously for convenient data viewing, with data storage and print record functions.
2.Allows storage of standard motor parameters.
3.Supports simultaneous testing of multiple motors.
4.Features high precision, fast testing speed, strong anti-interference capability, easy operation, flexibility and reliability.
5.Adopts a Windows-based system for automatic judgment of motor qualification. Modular structure with independent modules facilitates maintenance and calibration.
Technical Parameters of 0.12kW-11kW Single-Phase & Three-Phase Asynchronous Motor Test Bench
(The customer shall provide the rated voltage and rated frequency of the test motor.)
|
Test item |
Measuring range |
Accuracy |
Description |
|
|
Temperature |
-40～150℃ |
±1℃ |
Ambient temperature measurement |
|
|
DC Resistance |
0.01～2000Ω |
Class 0.2 |
6 measuring ranges, automatic temperature compensation |
|
|
Insulation Resistance |
DC 500V/ 1～500MΩ |
Class 5.0 |
Automatic background deduction |
|
|
Inter-turn Test |
400～3000Vp |
Class 5.0 |
Wavefront time 0.2μs, automatic judgment of adjacent turn-to-turn conditions at 1/200 turns |
|
|
Power Frequency Withstand Voltage |
Withstand voltage |
AC 400～3000V |
Class 2.0 |
1~ 60 seconds settable |
|
Leakage current |
1～50 mA |
Automatic background deduction, with breakdown protection |
||
|
Electrical Parameter Test |
Current |
0.1A～50A |
Class 0.5 |
|
|
Voltage |
30～750V |
Class 0.5 |
||
|
Frequency |
50/60Hz (Asynchronous) |
|||
Application fields of single-phase and three-phase asynchronous motor test bench
Motor manufacturing industry: used for factory inspection and performance testing of single-phase and three-phase asynchronous motors.
Home appliance manufacturing industry: used for performance testing of supporting motors such as fans, pumps, compressors, etc.
In the field of industrial automation: used for performance verification and quality control of industrial drive motors.
Motor research and development laboratory: used for motor research and development, type testing, and performance parameter analysis.
Quality inspection agency: used for quality inspection and technical appraisal of motor products.
Universities and research institutes: used for motor teaching, experimentation, and scientific research testing.
In the field of motor maintenance and testing: used for verifying the operational performance and electrical parameters of motors after maintenance.
Frequently Asked Questions
What is the core function of this Asynchronous Motor Test Bench?
This Asynchronous Motor Test Bench is used for performance testing and factory inspection of single-phase and three-phase asynchronous motors. It covers:
No-load testing
Locked-rotor testing
Temperature rise testing
Load characteristic testing
Efficiency and power factor measurement
Electrical parameter verification
It serves as a key platform for motor production quality control.
Which industries use this system?
Typical applications include:
Motor manufacturing plants
Industrial motor production lines
HVAC and pump equipment manufacturers
Industrial automation equipment companies
Third-party testing laboratories
Energy efficiency certification institutions
Can single-phase and three-phase motors be tested on the same platform?
Yes. Modern systems support both:
Single-phase motor testing
Three-phase asynchronous motor testing
Multiple power ratings within one platform
Switching or automatic recognition is used for different motor types.
What are the main test functions?
Typical functions include:
Voltage, current, and power measurement
Speed (RPM) measurement
Torque measurement
Power factor (PF) calculation
Efficiency calculation
Temperature rise recording
Locked-rotor current and torque testing
Does Asynchronous Motor Test Bench support motor efficiency grading?
Yes. It can be used for:
IE1 / IE2 / IE3 / IE4 efficiency classification
Energy efficiency certification (IEC 60034)
High-efficiency motor validation
