Product introduction

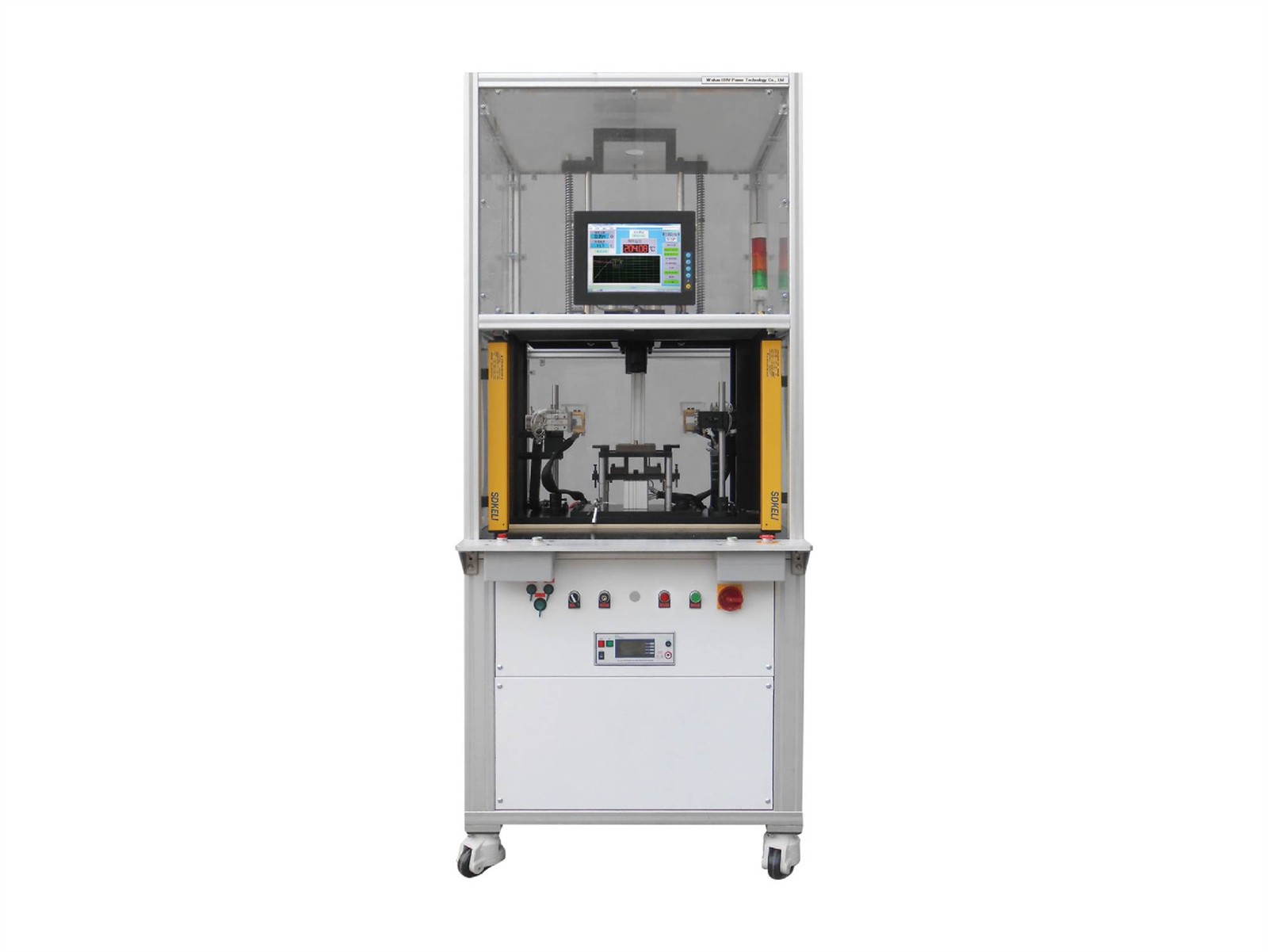

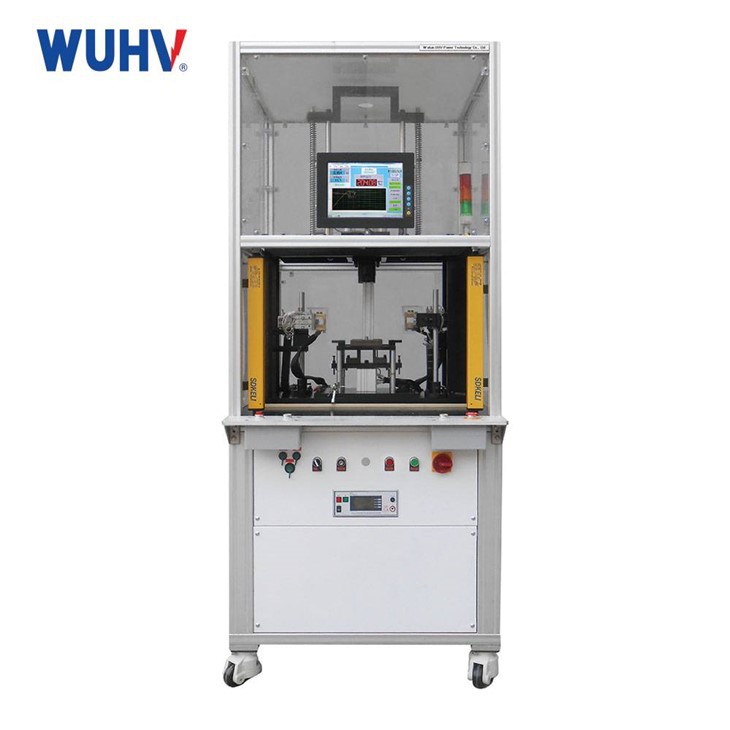

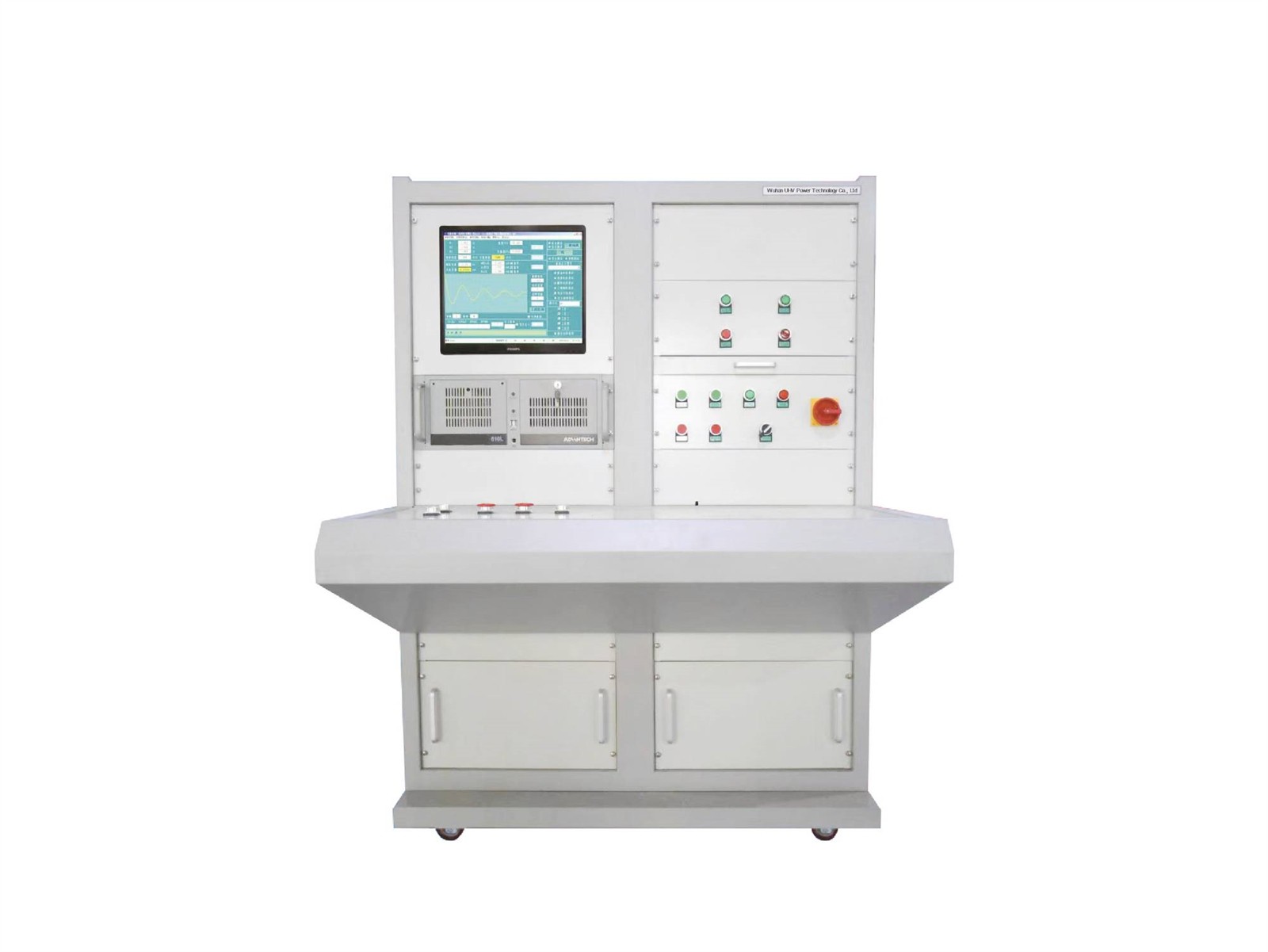

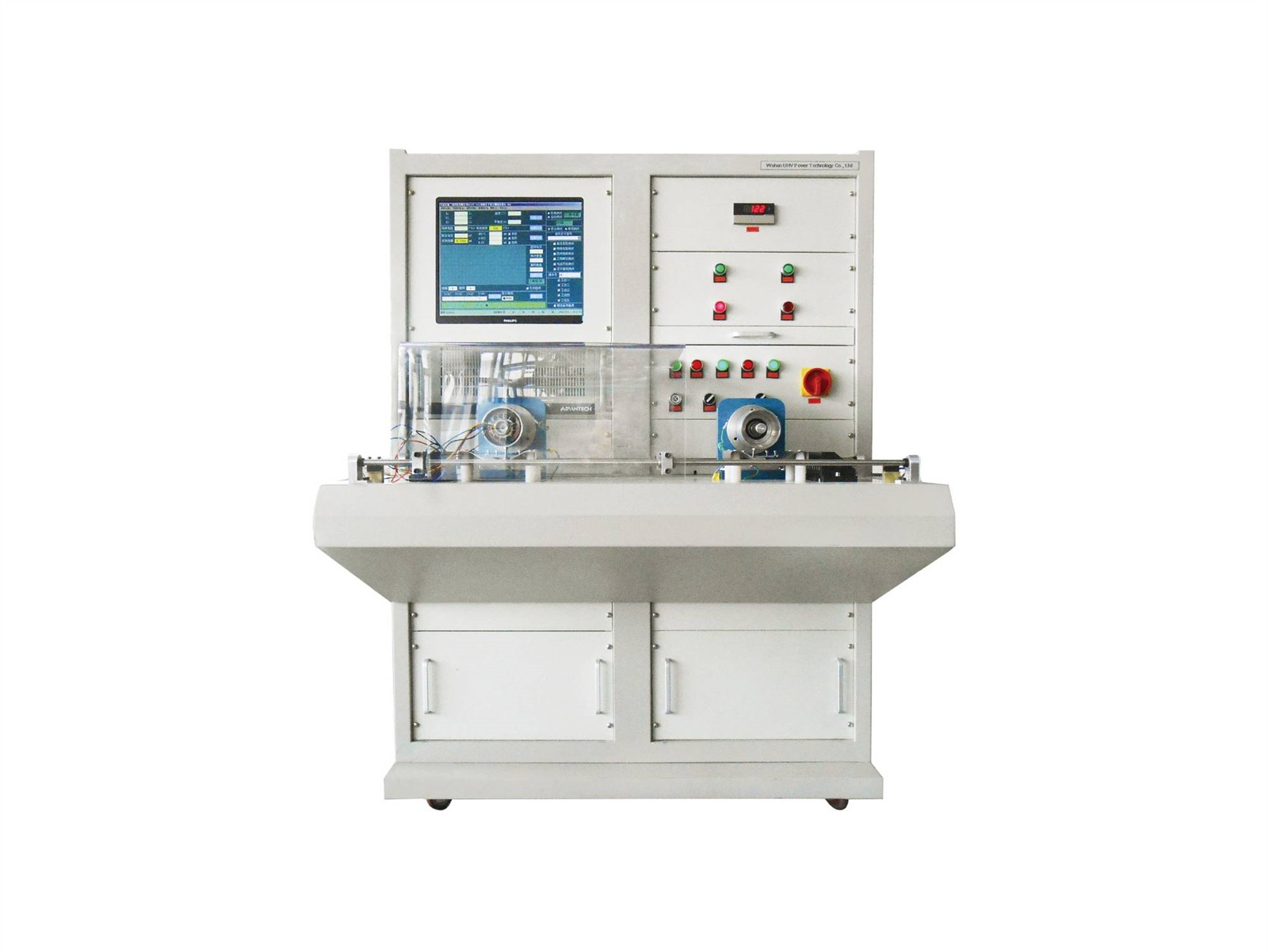

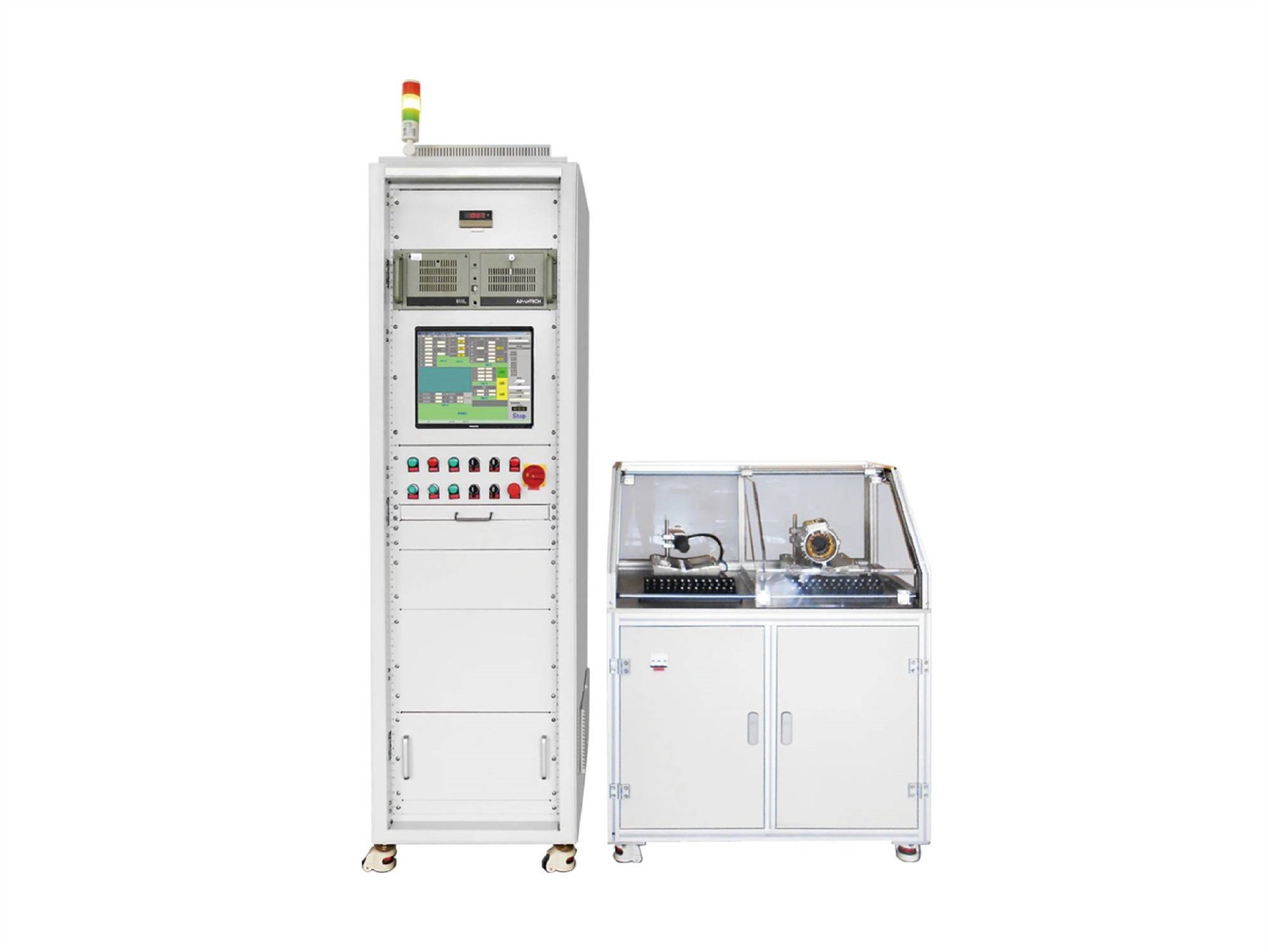

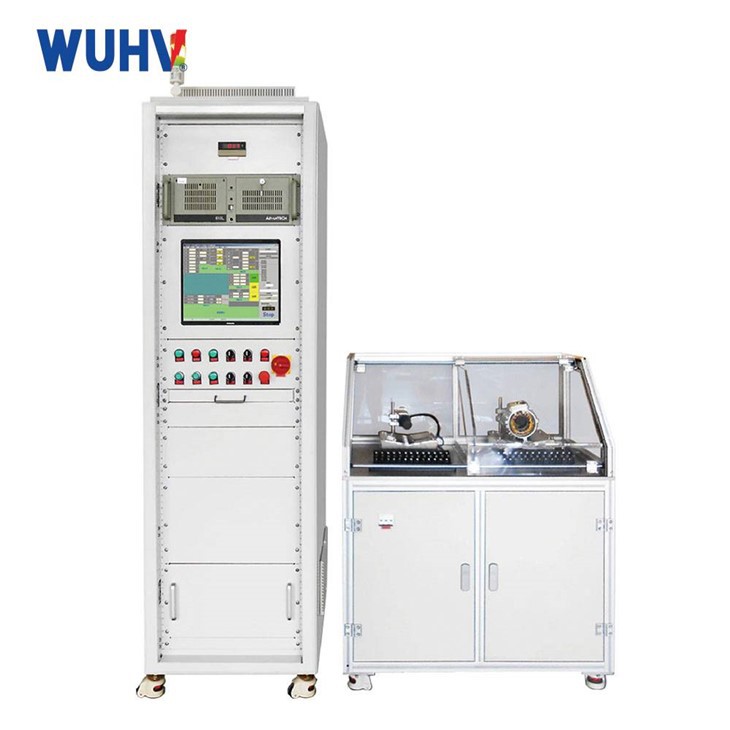

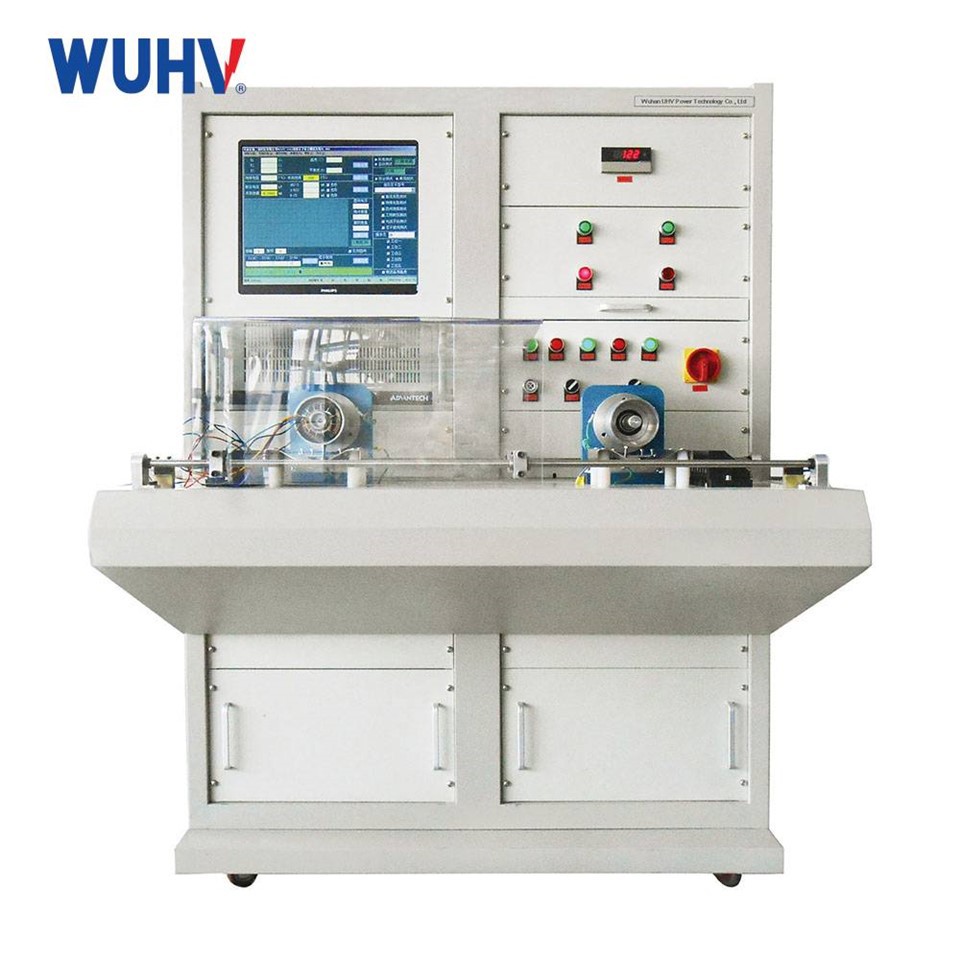

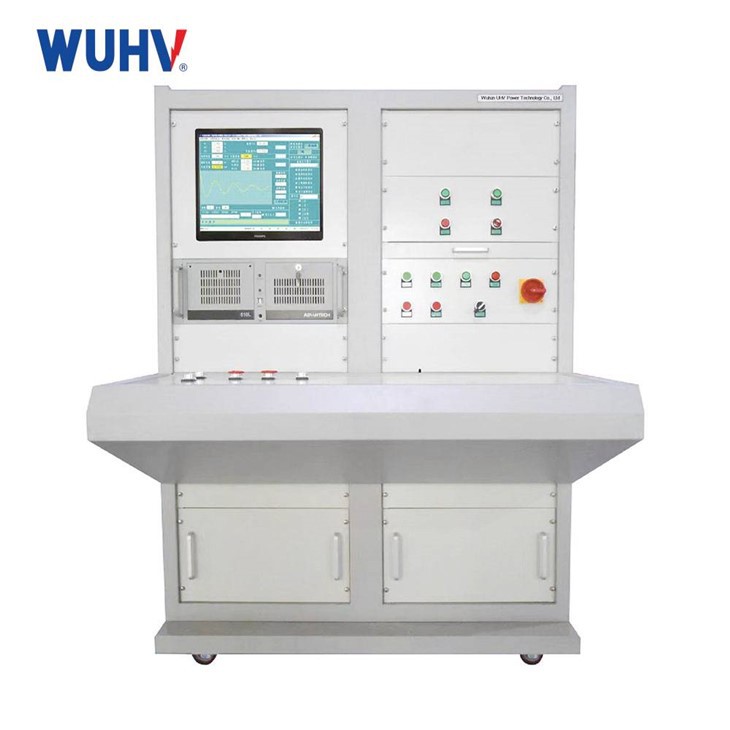

The UHV-316D stator test system (stator test bench) is mainly used for testing single-phase and three-phase generator stators, and can measure stators with 3-wire, 6-wire, 9-wire, and 12-wire windings. This test system adopts a 2-channel wiring method, suitable for testing 3-wire and 6-wire stators of new energy motors below H355 frame size.
Test items including DC resistance test, insulation resistance test, inter turn insulation test, power frequency withstand voltage test, winding current balance test, and rotation direction test.
Optional test items including Inductance test, current balance test, magnetic field rotation direction test.
Product Features of Stator Test Bench (3000V)

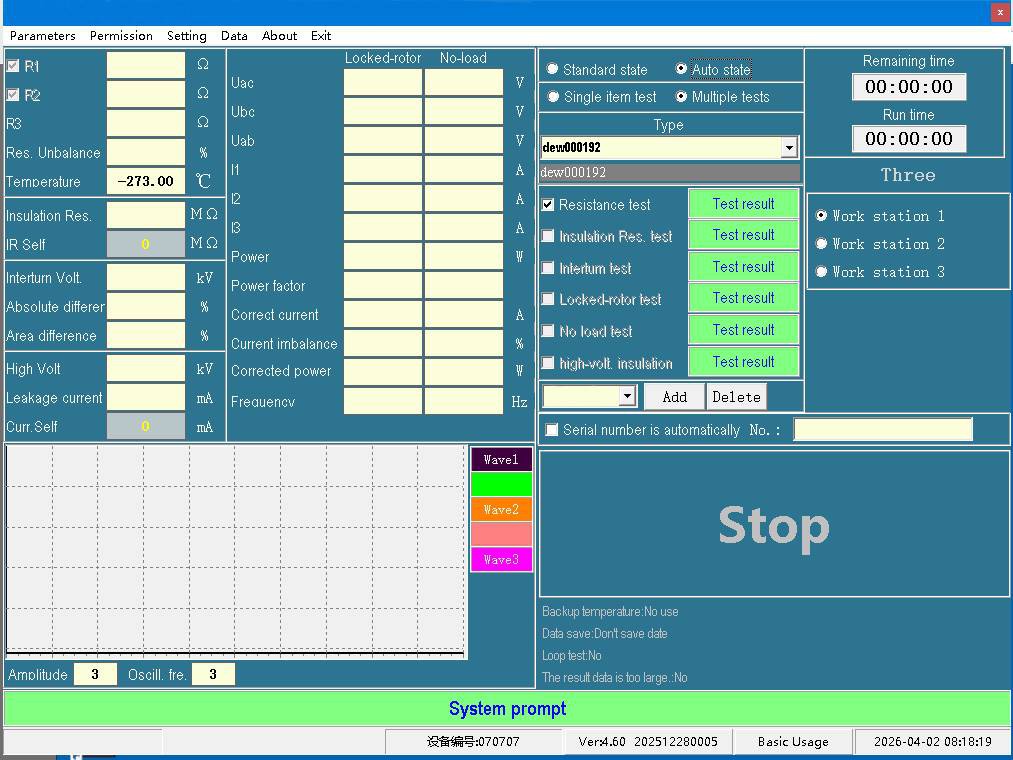

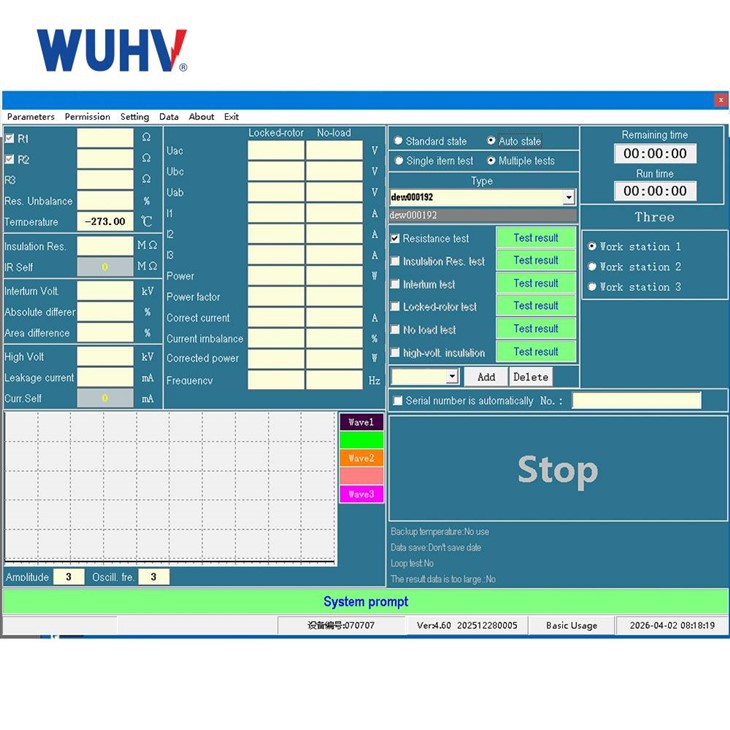

1.Displays all test results simultaneously for easy data viewing, with data storage and printout functions.
2.Equipped with a foot‑operated safety switch for safe and reliable operation.
3.Standard medium and small stator tester with front‑end test fixture, meeting test requirements for single‑phase and three‑phase stators.
4.Fast measurement speed, suitable for high‑volume production such as home appliances and water pump motors.
Technical Parameters of Stator Test Bench (3000V)
|
Test Item |
Measuring Range |
Accuracy |
Performance Description |
|
|
DC Resistance |
(0.01～2000)Ω |
Class 0.2 |
Automatic temperature compensation; test time adjustable |
|
|
Insulation Resistance |
DC500V /(1～500) MΩ |
Class 5.0 |
Automatic background insulation deduction; measurement time adjustable |
|
|
Inter turn Test |
DC(400～3000)Vp |
Class 2.0 |
Rise time: 0.2 μs; automatic judgment of inter turn insulation for 1/400 turns |
|
|
Power Frequency Withstand Voltage |
Withstand Voltage |
AC (400～3000)Vac |
Test time: 1 ~ 60 seconds adjustable |
|
|
Leakage Current |
(1～100 )mA |
Automatic background leakage current deduction; with breakdown protection |
||
