Product introduction

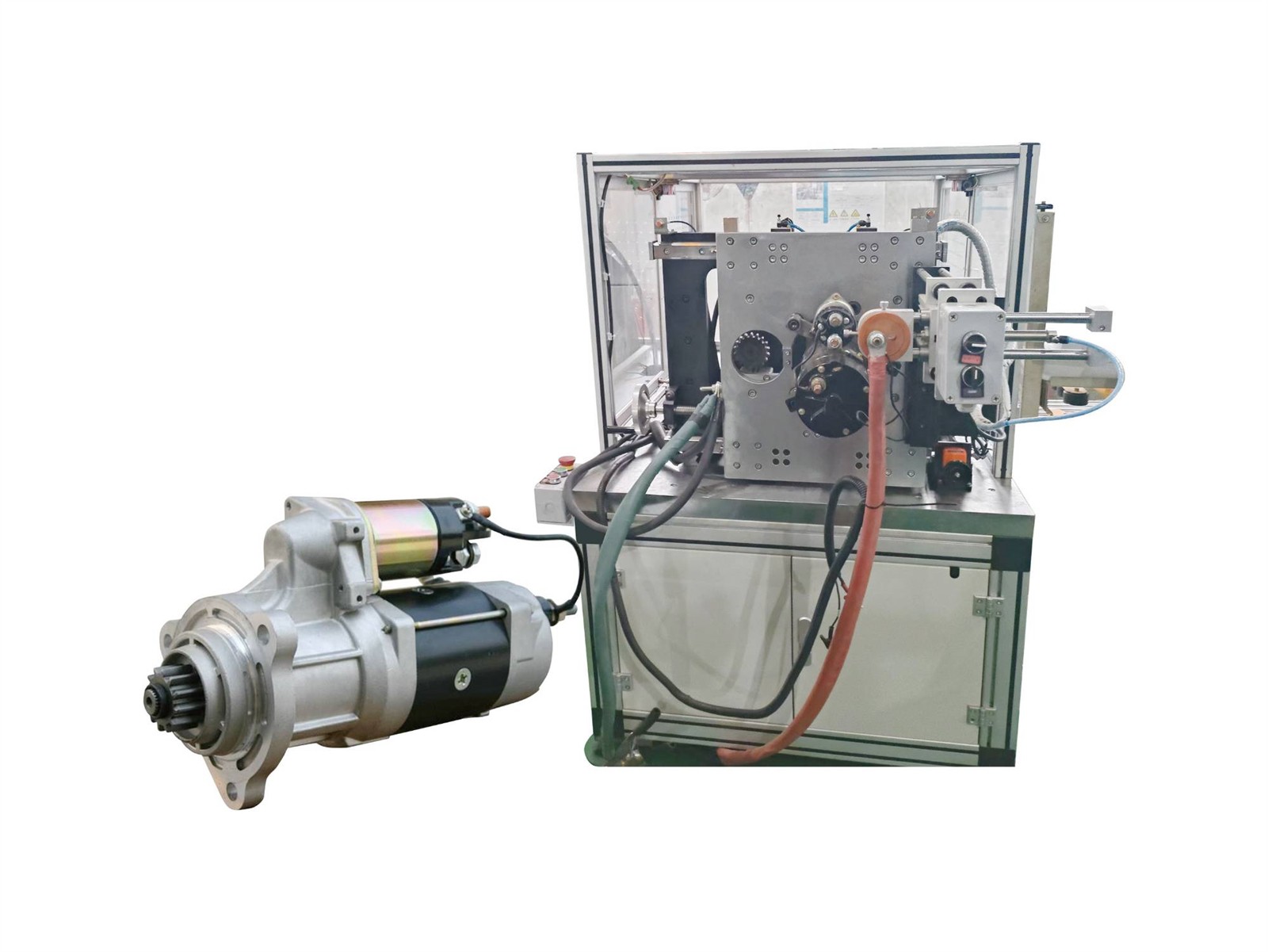

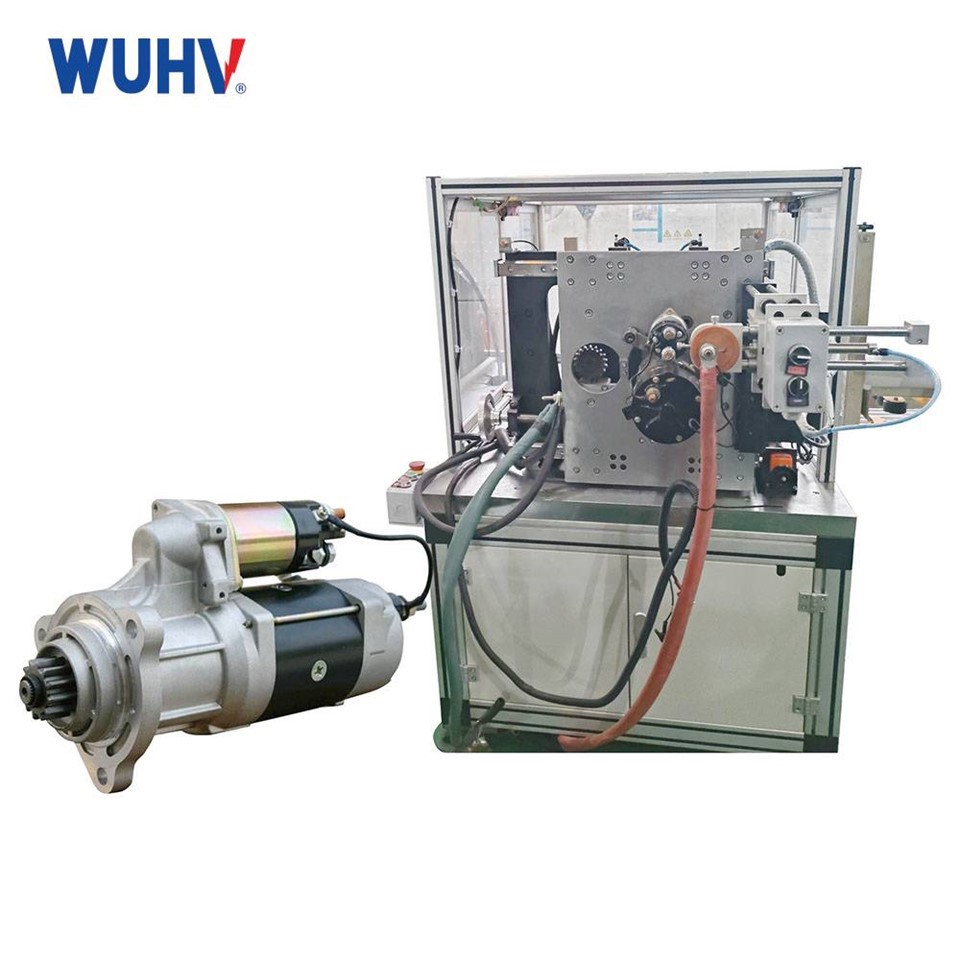

The UHV-316Q Starter Motor Test Bench is a fully automatic computer-controlled console for testing starter motor performance. It adopts a servo system as the loading source, featuring high control accuracy and stable performance. The system consists of three parts: a performance test bench, a measurement and control cabinet, and an analog storage battery power supply. It is suitable for testing various automotive starter motors.
Test Item
Pull-in and Release Voltage Test (Voltage, Current)
No-Load Test (Voltage, Current, Speed)
Load Test (Voltage, Current, Power Curve, etc.)
Technical Parameters
|
Voltage |
12-32VDC ±0.5% |
|
Current |
0-3000A ±0.5% |
|
No-load speed |
0-15000rpm ±0.5% |
|
Load speed |
0-3000rpm ±0.5% |
|
Starter motor torque |
0-250N.m ±0.5% |
|
Starter motor power |
2-10kW |
