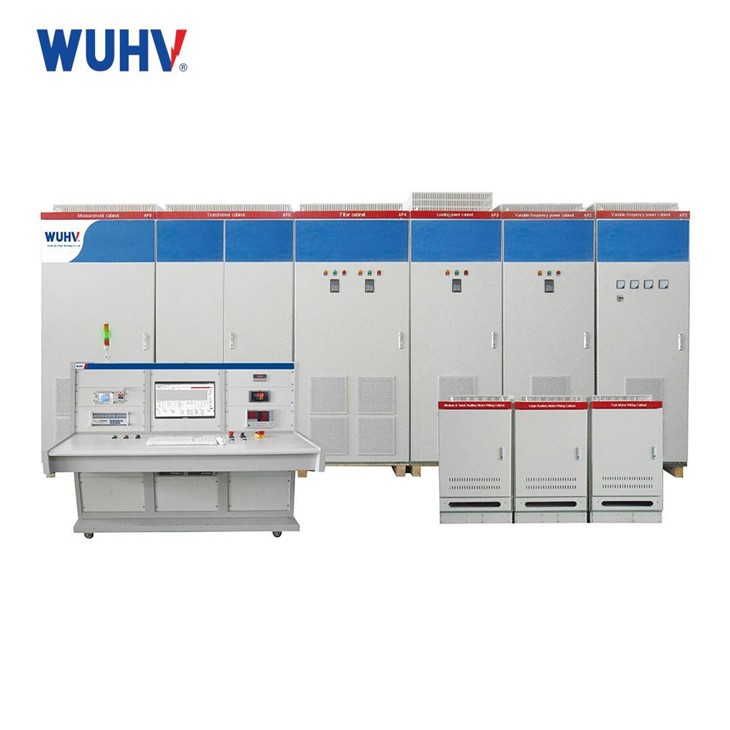

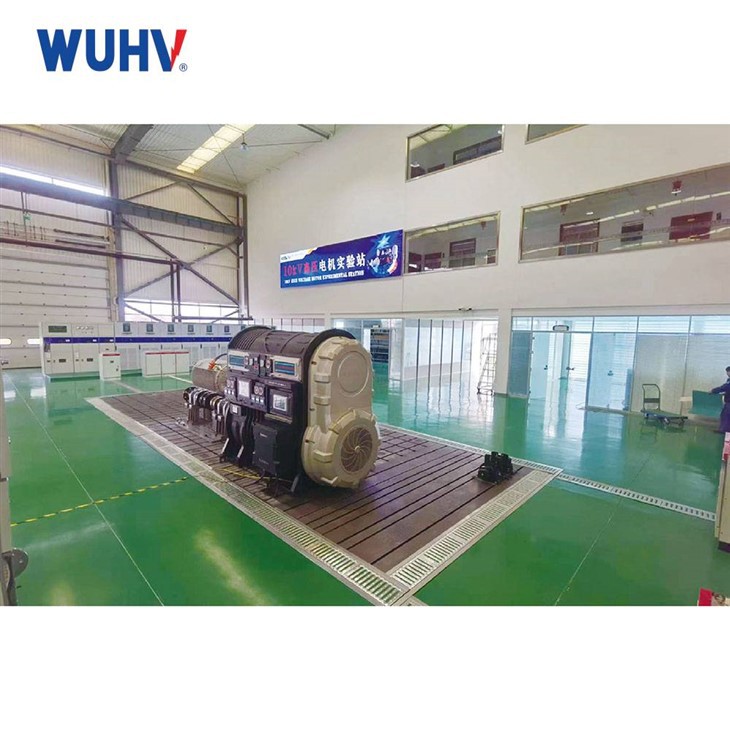

Product introduction
The UHV-316X series motor type test system is suitable for single/three-phase asynchronous motors, three-phase permanent magnet synchronous motors, DC motors and other types of motors. Customized design is available according to users' different product requirements.
The test software of this system is independently developed by our company with complete independent intellectual property rights. The software features a clean and elegant interface, simple and convenient operation, and good adaptability. It can automatically generate test reports and corresponding test curves. All performance indicators of the test system comply with relevant international and national standards such as IEC 60034-2-1, GB 755, GB/T 1032, GB/T 1029, GB/T 1311, IEEE 112, and CSA 390.
Main Test Items
Ambient and winding temperature test: using thermocouples, thermistors, etc.
DC resistance test: converted in accordance with standards
Locked-rotor test: measuring locked-rotor torque and locked-rotor current curves
No-load characteristic curve test: automatic analysis of iron loss and mechanical loss
Temperature rise test: automatic plotting of temperature curves; actual load / equivalent load method optional
Load test: measuring efficiency / power factor curves; actual load / equivalent load method optional
Stray loss test: different methods available for determining stray loss of motors
T-n curve plotting (measurement of maximum torque and minimum torque)
Measurement Range
Power range: 60W ~ 3MW; customization for other power ratings supported
Test voltage level: 24V ~ 10kV
Speed range: 0 ~ 24000 rpm
Frequency range: 0 ~ 1000 Hz
Test Accuracy
DC resistance: Class 0.2
Electrical parameters and transformers (sensors): Class 0.2
Temperature: ±1°C
Speed: ±1 rpm (below 1800 rpm); ±0.1% (above 1800 rpm)
Torque: ±0.2%
Subject to the actual configuration.
