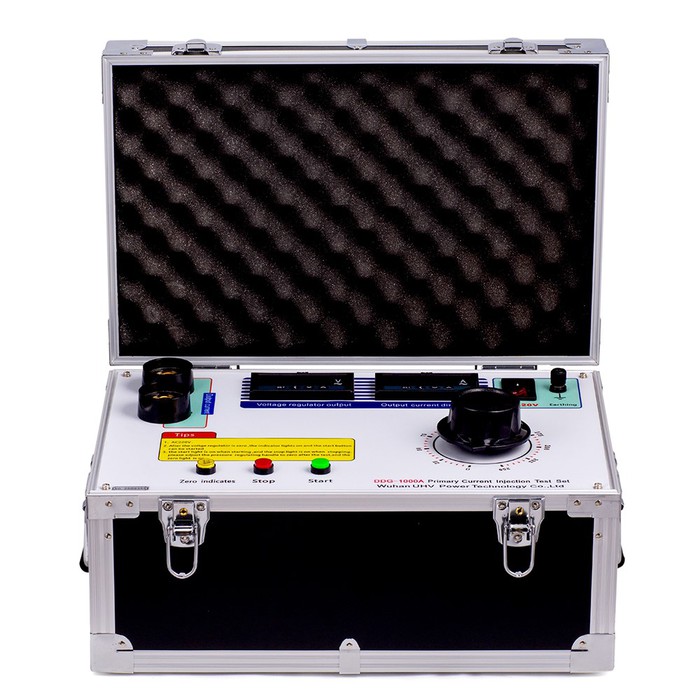

Product introduction
A primary current injection tester is a specialized device used to generate high-intensity currents, widely used in fields such as power system maintenance, material research, and electronic equipment testing.As an important electrical testing equipment, primary current injection testers play an irreplaceable role in fields such as power, electrical engineering, scientific research, and teaching. By understanding its functions and principles, and correctly using and maintaining the equipment, its advantages can be fully utilized to provide strong support for performance testing and scientific research experiments of electrical equipment. At the same time, with the continuous advancement of technology and the expansion of application fields, high current generators will also usher in broader development prospects.
Technical parameters
(Special parameters can be customized)
| type specification | capacity(kVA) | elementary | secondary | boundary dimension(mm),length×relax×high-priced | weightkg | structural style | ||
| V1 | A1 | V2 | A2 | |||||
| DDG-500 | 3 | 220 | 15 | 6 | 500 | 430×338×550 | 48 | an organic whole |
| DDG-1000 | 6 | 220 | 27 | 6 | 1000 | 500×380×600 | 80 | an organic whole |
| DDG-2500 | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 | 145 | an organic whole |
| DDG-4000 | 24 | 380 | 63 | 6 | 4000 | 640×450×820 | 180 | an organic whole/fission |
| DDG-5000 | 30 | 380 | 79 | 6 | 5000 | 600×430×900,300×500×500 | 145,135 | fission |
| DDG-6000 | 36 | 380 | 95 | 6 | 6000 | 600×430×900,300×500×500 | 150,140 | fission |
| DDG-8000 | 48 | 380 | 126 | 6 | 8000 | 600×450×950,350×550×550 | 180 | fission |
| DDG-10000 | 60 | 380 | 158 | 6 | 10000 | 800×600×1100,380×550×600 | 200 | fission |
Core Functions
Primary current injection testers are mainly used to generate high stability, high-precision DC or AC high currents. It can adjust the size and waveform of the output current according to the user's needs to meet the testing requirements of different occasions. Primary current injection testers play an important role in the following aspects:
Electrical equipment testing: During the manufacturing and maintenance process of electrical equipment, it is necessary to test the electrical performance of the equipment. A primary current injection tester can simulate actual working conditions and provide the required high current for equipment to test its performance and reliability.
Research experiments: In the fields of power electronics, electrical transmission, electromagnetic fields, etc., primary current injection testers can be used to generate specific waveforms and amplitudes of high currents to study the effects of current on materials, equipment, or systems.
Teaching demonstration: The primary current injection tester can be used for teaching electrical majors in universities and vocational colleges, helping students understand the principles of high current generation, transmission, and control, and improving practical operation skills.
Precautions
When using a primary current injection tester, the following points should be noted to ensure safety and effectiveness:
Adhere to safety operating procedures: When operating a high current generator, strictly follow the safety operating procedures, wear protective equipment, and avoid accidents such as electric shock and short circuit.

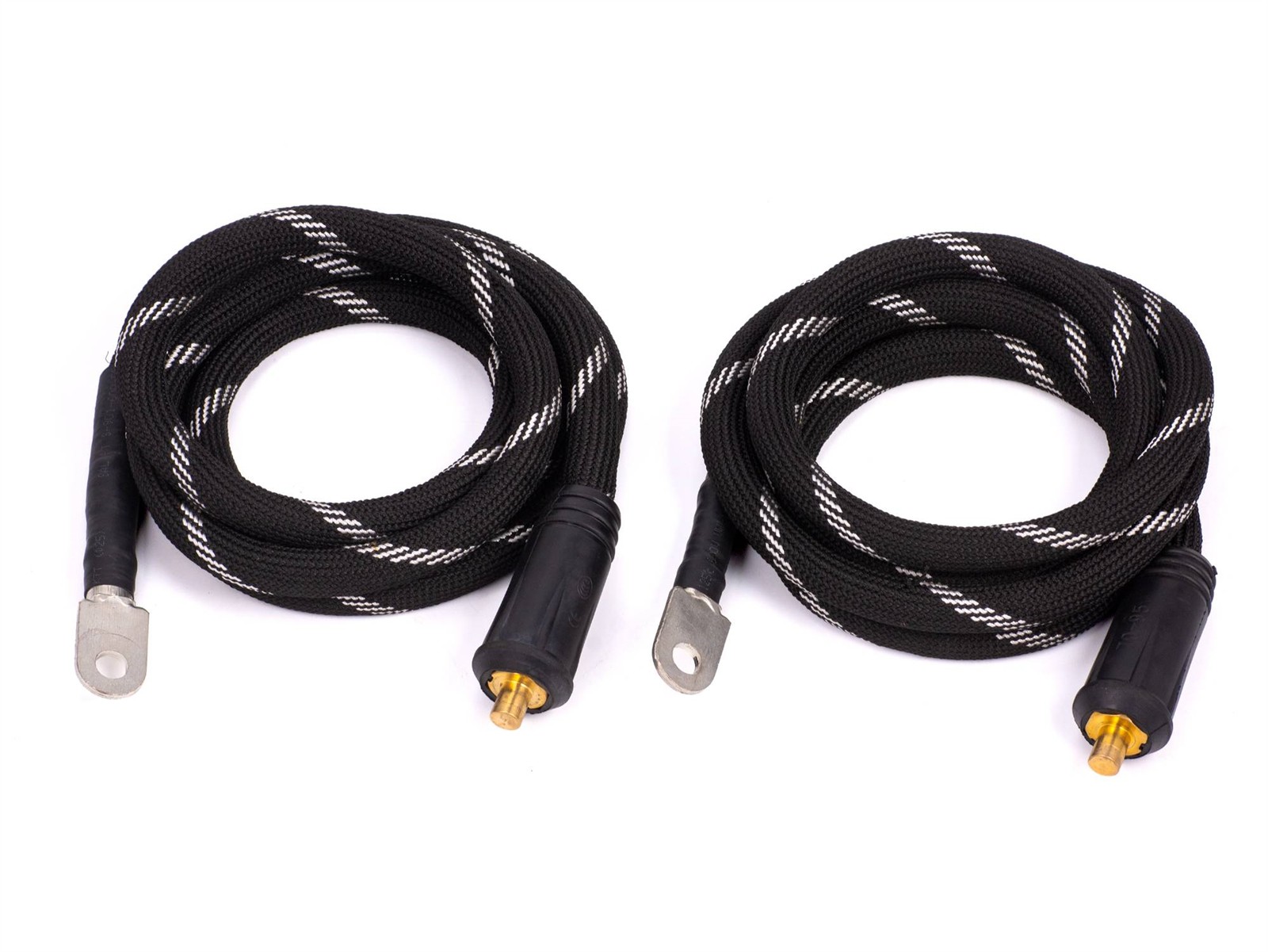

Choose appropriate power supply and cables: A primary current injection tester requires a stable power supply and appropriate cables to ensure the efficiency and safety of current transmission.
Correct parameter setting: According to the testing requirements, correctly set the parameters of the primary current injection tester, including current magnitude, waveform, and duration, to ensure the accuracy of the test results.
Regular inspection and maintenance: Regularly inspect and maintain the primary current injection tester, including cleaning internal components, checking power cords and interfaces, etc., to ensure the normal operation of the equipment and extend its service life.
